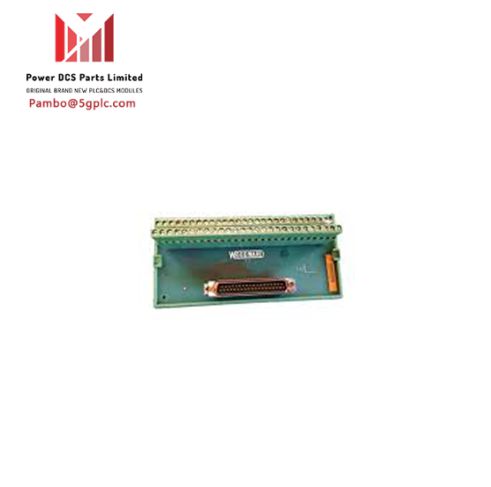

Woodward 5437-281 Analog Field Terminal Module

Description

The Woodward 5437-281 is an analog Field Terminal Module (FTM) developed for precise signal processing in industrial control systems. It incorporates high-quality analog-to-digital converters (ADCs) and digital-to-analog converters (DACs) to ensure accurate and precise conversion between analog and digital signals. This enables seamless integration of analog signals into digital control systems, providing the necessary interface for monitoring and controlling critical variables within industrial processes.

Features

• High-resolution analog-to-digital and digital-to-analog conversions
• 37-pin connector for secure and reliable electrical connections
• Standard screw clamp terminals for ease of use
• 12 analog input channels and 4 analog output channels
• Each input channel can be configured independently using a plug-in standard isolated Dataforth SCM7B converter
• Designed to conform to standard specifications for easy integration with other systems

Technical Specifications

• Part Number: 5437-281
• Manufacturer: Woodward
• Product Type: Field Terminal Module
• Resolution: 14-bit converter
• Temperature Coefficient: 12 ppm/degree C
• Dimensions: 6.25 x 3.50 x 2.75 inches
• Weight: 0.55 lbs
• Country of Manufacture: United States (USA)
• Certifications: CE, UL
