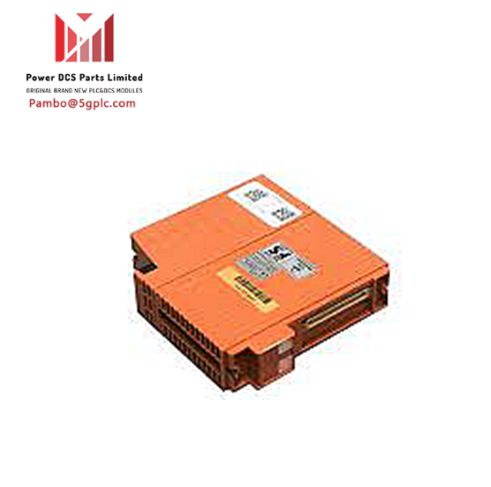

Yokogawa SAI533-H33/PRP Output Module PLC

Overview

The Yokogawa SAI533-H33/PRP is a high-performance current output module for the Yokogawa CENTUM VP integrated production control system. It features 8 channels of isolated current output, with a rated output range of 4 to 20mA. The SAI533-H33/PRP is designed for a wide range of industrial applications, including process control, manufacturing, and power generation.

Features

• 8 channels of isolated current output
• Rated output range of 4 to 20mA
• High accuracy of ±0.05% of full scale
• Low noise performance of 10µA
• Support for dual redundancy
• Hot swappable components

Technical Specifications

• Number of channels: 8
• Output range: 4 to 20mA
• Accuracy: ±0.05% of full scale
• Noise: 10µA
• Load resistance: 230 to 600Ω
• Data update frequency: 40ms
• Withstand voltage: 1.5kV AC between output signal and system for 1 minute
• Maximum current consumption: 5V system: 320mA, 24V system: 300mA
• Weight: Approx. 0.26 kg (For pressure clamp terminal block or MIL cable), Approx. 0.33 kg (With signal cable interface adapter)
• External connection: Pressure clamp terminal, MIL cable, Dedicated signal cable
• Support PST(*2)
