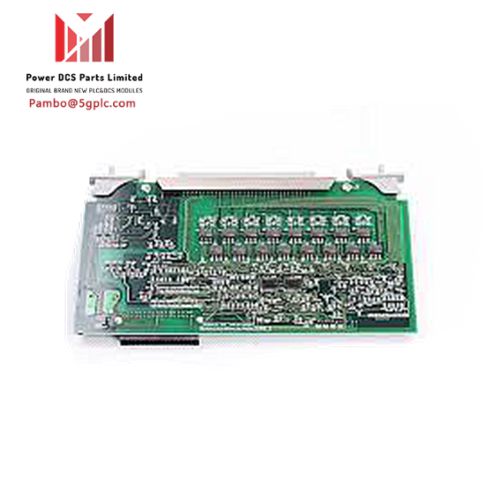

Yokogawa AMM22 Multiplexer Module

Description

The Yokogawa AMM22 is an analog input module designed for industrial automation applications. It features 8 channels and supports various signal types, including DC voltage and DC current. The module is known for its high accuracy and reliability, making it suitable for a wide range of industrial environments.

Features

• 8 channels of analog input
• Supports DC voltage and DC current signals
• High accuracy of ±0.1% of full scale
• 16-bit resolution
• Channel-to-channel and channel-to-system isolation
• Self-diagnostic features
• Easy configuration with Yokogawa’s system software
• Compact design for easy integration
• DIN rail or rack-mounted installation options

Technical Specifications

• Channels: 8
• Signal Types: DC voltage, DC current
• Input Range:
  • Voltage: ±10V
  • Current: 4-20mA, 0-20mA
• Resolution: 16-bit
• Accuracy: ±0.1% of full scale
• Isolation: Channel-to-channel and channel-to-system isolation
• Update Time: 250 ms
• Power Supply: 24V DC (±10%)
• Power Consumption: Approximately 5.0 W
• Dimensions: Compact design for easy integration into control panels
• Mounting: DIN rail or rack-mounted
• Connectors: Standard connectors for quick and secure connections
