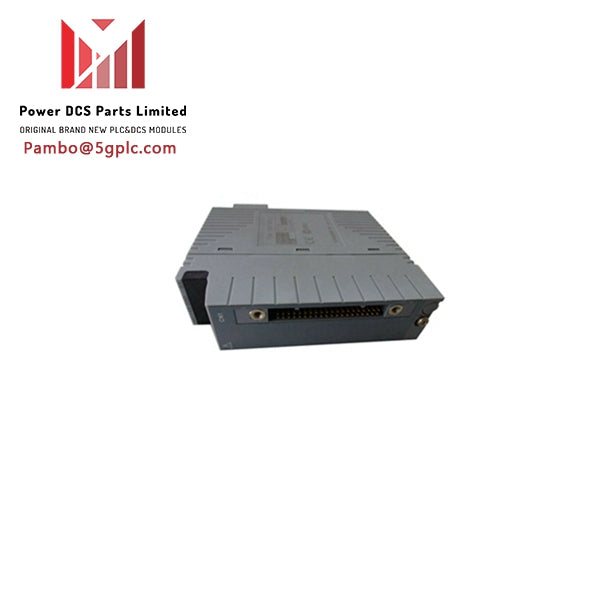

Yokogawa AAT145-S50 Analog I/O Module In Stock Brand New

Overview
The Yokogawa AAT145-S50 is an analog I/O module that functions as a signal converter. It is designed to input field analog signals, such as temperature or voltage, and convert them into digital data for use by field control stations (FCS). The AAT145-S50 can also convert digital data from the FCS into analog signals for output to field devices.

Features

• High accuracy: The AAT145-S50 provides high accuracy for both temperature and mV input measurements.
• Wide input range: The module can accept a wide range of input signals, including thermocouples, RTDs, and mV signals.
• HART communication protocol: The AAT145-S50 supports the HART communication protocol, which allows for remote configuration and diagnostics.
• Isolation: The module provides isolation between the input and output circuits, which helps to protect against noise and ground faults.
• Compact design: The AAT145-S50 is a compact module that can be easily mounted in a variety of control panels.

Technical Specifications

• Input range:
• Thermocouple: J, K, T, E, R, S, B, N, C, Pt100, JPt100
• mV: -200 to +200 mV
• Accuracy:
• Thermocouple: ±0.1% of reading or ±1.5°C, whichever is greater
• mV: ±0.1% of reading or ±0.2 mV, whichever is greater
• Output range: 4 to 20 mA
• Communication protocol: HART
• Isolation: 2500 V RMS
• Power supply: 24 VDC
• Operating temperature: -40 to +80°C
• Dimensions: 100 x 30 x 23 mm (H x W x D)
