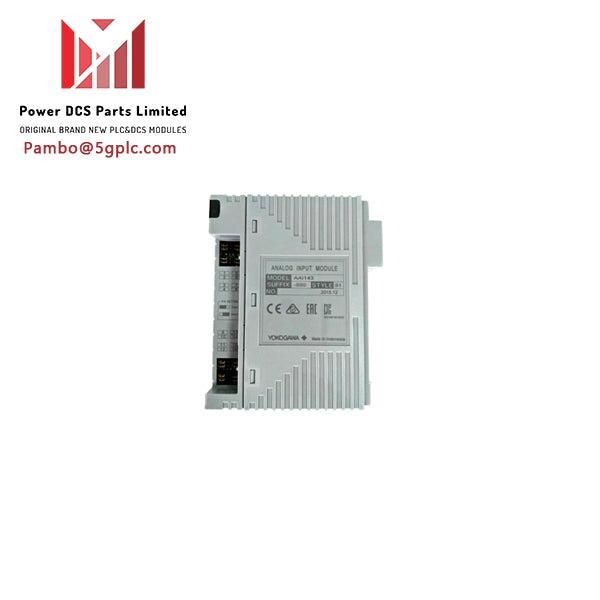

Yokogawa AAI143-H53/K4A00 Analog Input Module In Stock

Overview
The YOKOGAWA AAI143-H53/K4A00 is a 16-channel analog input module that is designed for use with the CENTUM VP and CENTUM CS series of control systems. It is a HART-compatible module that can accept 4-20 mA analog signals from field devices. The module is isolated to protect against ground faults and other electrical noise. It also features a KS Cable Interface Adapter that allows it to be connected to an AEA4D Terminal Board.


Features

• 16-channel analog input
• 4-20 mA input range
• HART-compatible
• Isolated
• KS Cable Interface Adapter
• AEA4D Terminal Board compatible
• CENTUM VP and CENTUM CS compatible

Technical Specifications

• Input range: 4-20 mA
• Accuracy: ±0.1% of full scale
• Resolution: 0.01% of full scale
• Input impedance: 250 Ω
• Output impedance: 2 kΩ
• Isolation voltage: 2,500 V RMS
• Power consumption: 2 W
• Operating temperature: -40 to 70°C
• Storage temperature: -40 to 80°C
• Humidity: 10 to 90% RH (non-condensing)
