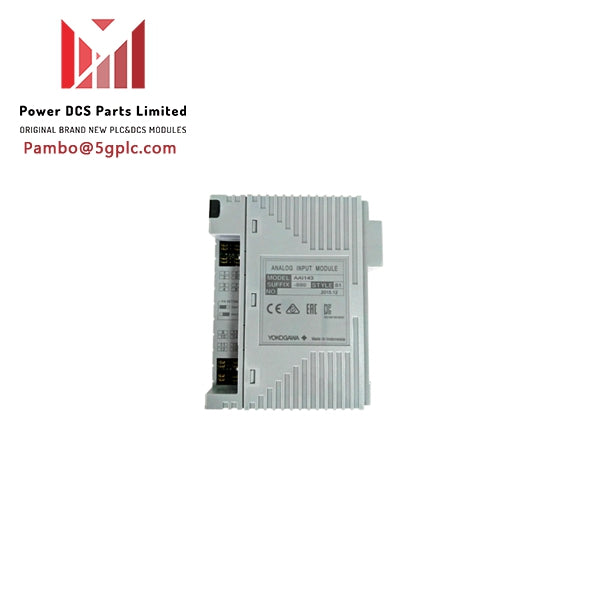

Yokogawa AAI143-H50/A4S10 Analog Input Module In stock Brand New

Overview

The YOKOGAWA AAI143-H50/A4S10 is a 16-channel analog input module that is designed for use in CENTUM VP and CENTUM CS distributed control systems. It is a current input module that can accept 4 to 20 mA signals from field devices. The module is isolated to protect against ground faults and other electrical hazards.

The AAI143-H50/A4S10 module supports HART communication, which allows it to communicate with HART-compatible field devices. This allows the module to receive additional information from the field devices, such as device diagnostics and calibration data.

The AAI143-H50/A4S10 module is a rugged and reliable module that is designed for use in demanding industrial applications. It is a popular choice for use in a wide variety of industries, including oil and gas, power generation, and chemical processing.

Features

• 16-channel analog input
• 4 to 20 mA current input
• Isolated
• HART communication
• Dual-redundant configuration
• Rugged and reliable

Technical Specifications

• Number of channels: 16
• Input type: Current
• Input range: 4 to 20 mA
• Accuracy: ±0.1% of span
• Resolution: 12 bits
• Isolation: 2,500 V RMS
• Communication: HART
• Power consumption: 2.4 W
• Operating temperature: -40 to 70°C
• Storage temperature: -40 to 80°C
• Humidity: 0 to 95% RH (non-condensing)
• Dimensions: 107.5 x 94 x 32.8 mm (4.23 x 3.70 x 1.29 in)
• Weight: 300 g (10.6 oz)

About Us：
Email:  Pambo@5gplc.com
Tel:+86 13306036024  (Whats-app, Skype)
We mainly manage PLC module, DCS module, CPU module, IO module, DO module, AI module, DI module, network communication module.Ethernet module, motion control module, analog input module, analog output module, digital input module, digital output.Modules, Redundancy Modules, Power Modules, Relay Output Modules, Relay Input Modules, Processor Modules.


FAQ
1.What about the warranty?
1 year warranty.
2. What is the delivery time?
1-3 Working Days
3.How about the shipment?
Such as DHL, FedEx, UPS, TNT,  etc.
4.What are the payment terms?
Generally, T/T and Western Union
