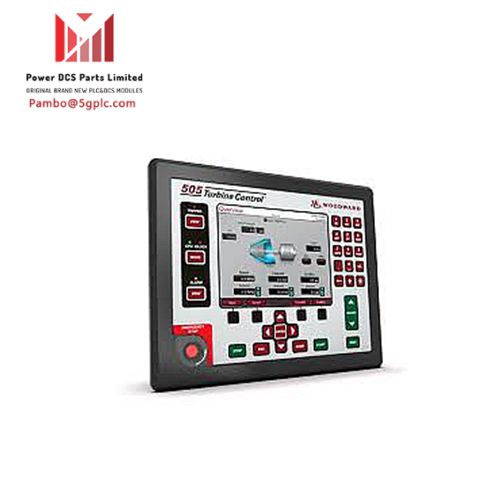

Woodward 8200-1302 Digital Governor Turbine Controller

Description

The Woodward 8200-1302 is a digital governor turbine controller from the 505D series. It is designed for the control of steam turbines and features an integrated graphical front panel HMI. This controller is suitable for marine and hazardous location applications, offering advanced control algorithms and enhanced communication protocols.

Features

• Integrated Graphical Front Panel HMI: Multilingual screens for easier operator use, diagnosis, and control.
• Advanced Control Algorithms: Includes OptiTune adaptive PID technology for optimal turbine performance.
• Improved Communications: Ethernet and CANOpen connectivity for seamless integration with plant DCS and Woodward actuators.
• Redundant Speed Inputs: Accepts magnetic pickup units, eddy current probes, or proximity probes.
• Auto Start Sequencing: Supports hot and cold starts with temperature input options.
• Critical Speed Avoidance: Three-speed bands to avoid critical speeds.
• Real-Time Trending: Locally viewable by operators and engineers for performance monitoring.

Technical Specifications

• Part Number: 8200-1302
• Manufacturer: Woodward
• Product Type: Digital Governor Turbine Controller
• Input Voltage: 18-36 VDC
• Operating Temperature: -22°F to 158°F (-30°C to 70°C)
• Screen Size: 8.4 inches LCD
• Analog Inputs: 4-20 mA channels with loop power
• Communication Protocols: Modbus, Ethernet, CANOpen
• Certifications: ATEX, IP-54, Pollution Degree 3.
