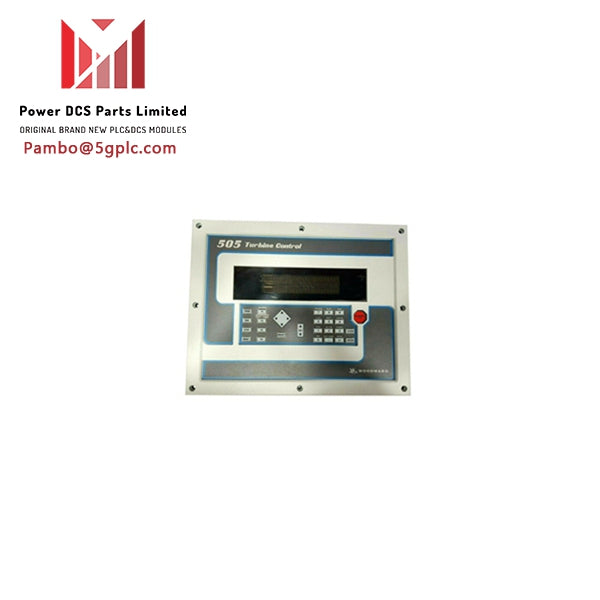

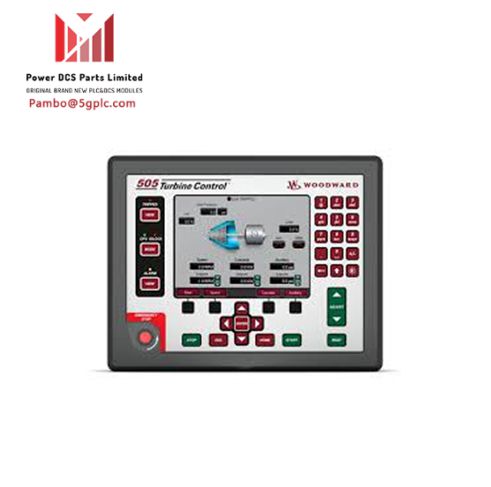

Woodward 8200-1300 HMI Screen

Description

The Woodward 8200-1300 is an integrated graphical front panel HMI designed to control single or dual (split range) actuator steam turbines. It is part of the 505D Digital Governor Turbine Control series and features LVDC (18-32 Vdc) power.

Features

• Integrated Graphical Front Panel HMI Screen
• Multilingual screens including Chinese for easier operator use, diagnosis, and control
• Large screen for easy navigation and icon view of parameters and performance
• Real-time trending locally viewable by operators and engineers
• Configurable tag names to easily identify connections
• Internal “Turbine Simulator” for off-line training and advanced testing before system changes
• Ethernet communications for connectivity to plant DCS, service tools, and RemoteView operator control panels
• CANOpen actuator connectivity for Woodward VariStroke actuators and DSLC-II power management networks
• OptiTune adaptive PID technology for optimum turbine performance setup
• High-speed data logs monitoring turbine operation and stress
• Vibration monitoring for protection and control
• Cyber compliant password-enabled logins
• RemoteView program for virtual monitor and control from a remote workstation or mobile device
• Control Assistant service tool for easy configuration, saving, comparing, and viewing settings and data logs

Technical Specifications

• Input Voltage: LVDC (18–32 Vdc)
• Operating Temperature: –30 °C to +70 °C (with display)
• Screen Size: 8.4 inches
• Standards: IP20, Pollution Degree 2, Overvoltage Category 3
• Storage Temperature: –30 °C to +70 °C (recommended 0 °C to 40 °C)
• Compliance: Suitable for Class I, Div. 2, Groups A/B/C/D locations
