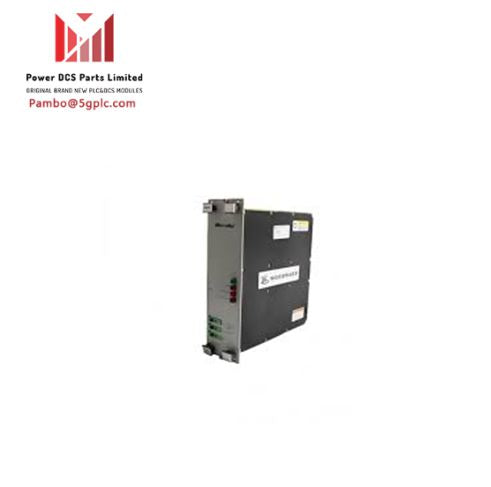

Woodward 5501-467 Simplex Power Board

Description

The Woodward 5501-467 is a high-voltage power supply board designed for industrial automation applications. It operates on an input voltage of 220 VAC/VDC and can be used in MicroNet Simplex or MicroNet Plus chassis. This model ensures reliable power supply to various control systems, even in harsh environments.

Features

• High Voltage Input: Supports a wide range of AC/DC input voltages.
• LED Indicators: Four LEDs for power supply health indication (OK, input fault, power supply fault, overtemperature fault).
• Fault Detection: Indicates power supply faults and overtemperature conditions.
• Versatile Use: Compatible with MicroNet Simplex and MicroNet Plus chassis.
• Robust Design: Suitable for industrial environments.

Technical Specifications

• Input Voltage: 220 VAC/VDC
• Operating Range: 180-264 VAC (47-63 Hz)
• Output Current (5 VDC):
  • 22.0 A @ 65 °C
  • 28 A @ 60 °C
  • 32 A @ 55 °C
• Max Input Power:
  • 1250 VA (Plus chassis)
  • 1062 VA (Simplex chassis)
• Max Input Current:
  • 5.9 A (Simplex chassis)
  • 6.7 A (Plus chassis)
• Dimensions: 30 cm x 20 cm x 25 cm
• Weight: 0.8 kg
• Sound Level: < 70 dBA
• Altitude: 4000 m Max
