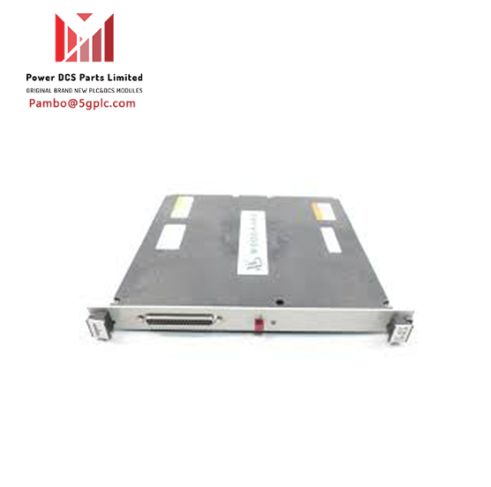

Woodward 5501-432 2CH Actuator Control Module

Description

The Woodward 5501-432 is a 2CH Actuator Control Module (200mA Version) released as part of the NetCon Controller Series. It is designed to control actuators with high precision and reliability. The module includes several fault detection features and can accommodate up to two position feedback devices per channel.

Features

• High Precision Control: Position accuracy rating of 0.25% of full-scale at 25°C.
• Fault Detection: Alarms for errors related to excitation, feedback, and drivers.
• Safety Features: Programmable threshold and delay, automatic output shut off if communications with the CPU module are lost.
• Feedback Devices: Supports LVDT and RVDT feedback devices.

Technical Specifications

• Dimensions: 10.25 x 9.75 x 1 inches
• Driver Version: 200 mA (245 Max)
• Max Load Resistance: 10Ω (maximum current required, in amps)
• Power Requirements: +5 V @ 0.5 A, +24 V @ 1 A
• Weight: Less than 2 lbs (before packaging)
• Output Current Tolerance: ±1% of full scale
• Current Read Back Tolerance: ±5% of full scale
