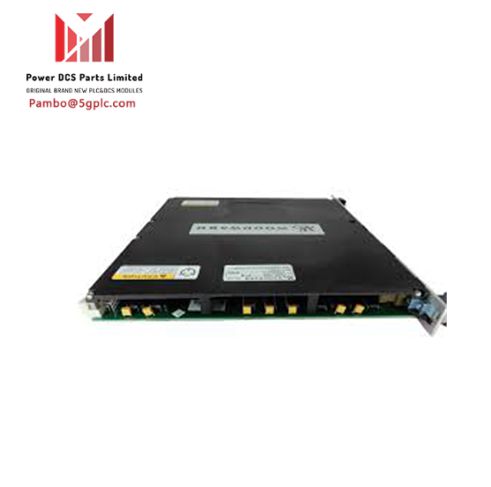

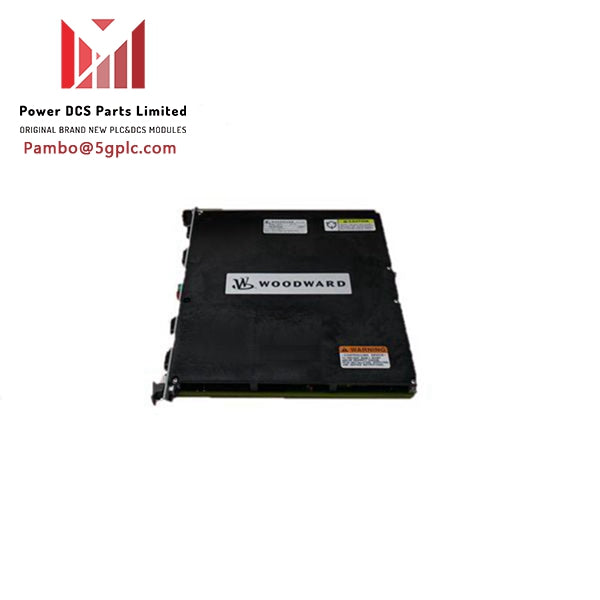

Woodward 5466-355 Remote Chassis Transceiver

Description

The Woodward 5466-355 is a Remote Chassis Transceiver developed for CPU 68040 systems. It receives and sends control, data, and address information to and from the Main XCVR module via cable. This module must be installed in each Remote I/O Chassis that is wired to the Main Chassis.

Features

• High-Speed Parallel Interface: Utilizes high-speed differential line drivers operating at the VME transmission rate.
• Cable Interface: Equipped with 100-pin metal shell Micro-D connectors for robust and dependable connections.
• No Switches or LEDs: Simplified design without switches or LEDs.
• Termination Resistors: Required in the final expansion chassis in the chain.
• Slot 1 Installation: Must be installed in Slot 1 of the chassis.

Technical Specifications

• Compatibility: Only available for CPU 68040 systems.
• Interface: High-speed differential line drivers.
• Connectors: 100-pin metal shell Micro-D connectors.
• Installation: Slot 1 in the chassis.
