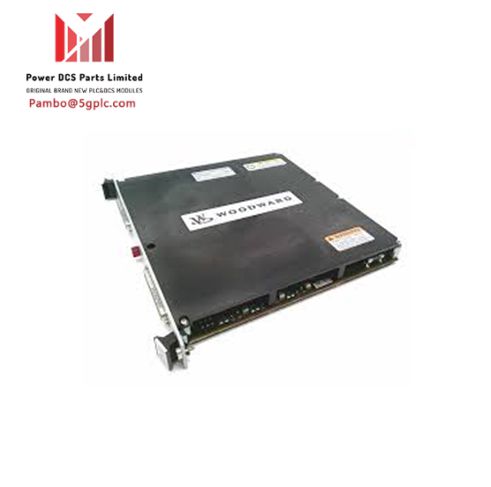

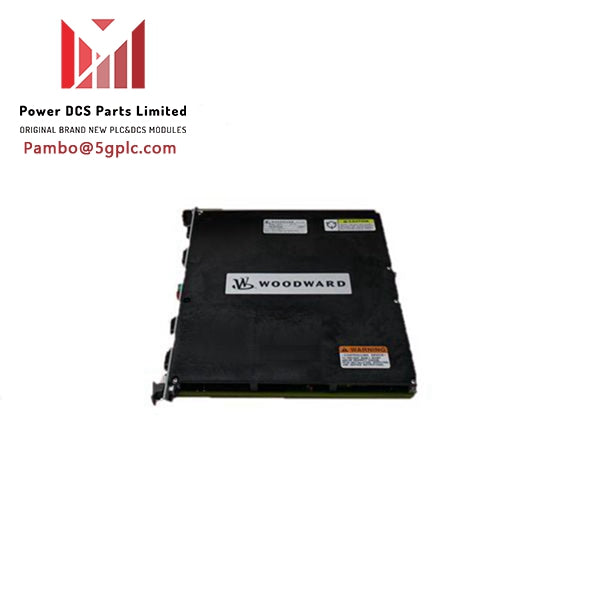

Woodward 5466-258 Discrete I/O Module

Functional Description

5466-258 is a Discrete I/O Module developed by Woodward. The modules are inserted into card guides in the control’s chassis and connected to the motherboard. Two screws, one at the top and one at the bottom of the front panel, hold the modules in place. There are also two handles at the top and bottom of the module that, when toggled (pushed outward), move the modules out just far enough for the boards to disengage the motherboard connectors.

Features

• Provides sixteen discrete inputs for field switches or relay contacts.
• Requires a +24 Vdc source for all sixteen inputs.
• Can be used in both Simplex and Redundant systems.
• Compatible with MicroNet and Vertex-Pro Chassis.
• Equipped with one Red Fault LED and is UL/ATEX Listed.
• Operating Temperature Range: 0-55°C.
• Storage Temperature: -40 to +105 °F.
• Weight: 48 lbs.

SPECIFICATIONS

• Part Number: 5466-258

• Manufacturer: Woodward

• Product type: Discrete I/O Module

• External input voltage: 18 to 32 Vdc

• Power Supply Input: 18 to 32 Vdc

• Power Required: 6.5 Watts at 24 Vdc

• Availability: In Stock

• Country of Manufacture: United States (USA)
