TQ4X2 IQS452 VIBRO-METER Signal Conditioner

Specifications

  • Manufacturer: VIBRO-METER

  • Product No.: TQ4X2 IQS452

  • Condition： 10 Items in Stock

  • Product Type: Signal Conditioner

  • Product Origin: Australia

  • Payment:T/T, Western Union

  • Weight: 620g

  • Shipping port: Xiamen

  • Warranty: 12 months

Product details

Description

Description

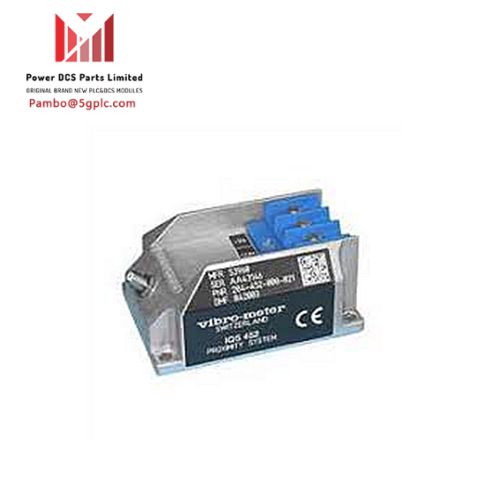

The VIBRO-METER TQ4X2 IQS452 is a proximity system designed for high-pressure applications. It is a non-contacting measurement system based on the eddy current principle, suitable for use in potentially explosive atmospheres.

Features

  • Designed for high-pressure applications
  • Certified for use in potentially explosive atmospheres
  • Non-contacting measurement system based on eddy current principle
  • Available in 5 m and 10 m systems
  • Temperature compensated system
  • Voltage or current output with protection against short circuits

Technical Specifications

  • Measuring range: 4 mm
  • Transducer temperature range: -25°C to +140°C
  • Sensitivity: 4 mV/μm or 1.25 μA/μm
  • Frequency response: DC to 20 kHz (-3 dB)
  • Output: Voltage or current proportional to the distance between the transducer tip and the target
  • Pressure resistance: Up to 100 bar
