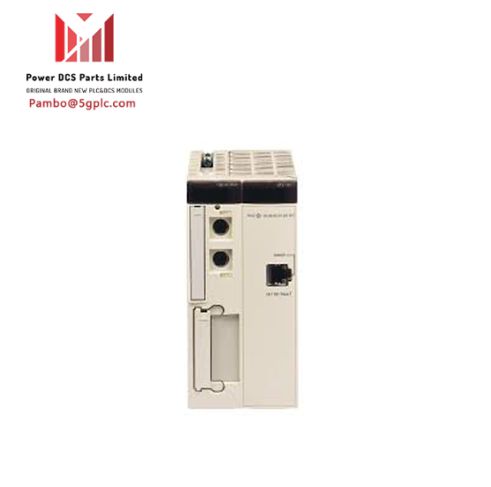

Schneider TSXP572634M Unity Pro Processor Module

Description

The TSXP572634M is a Unity processor from Schneider Electric’s Modicon Premium range. It features internal RAM of 160kB data, is transparent ready, and is compatible with Unity Pro software.

Features

• Range of Product: Modicon Premium automation platform
• Product or Component Type: Unity processor
• Software Designation: Unity Pro
• Concept: Transparent Ready
• Number of Racks: 16
• Number of Slots: 128
• Discrete I/O Processor Capacity: 1024 I/O
• Analogue I/O Processor Capacity: 80 I/O
• Number of Application Specific Channels: 24
• Number of Process Control Channels: 10 up to 30 simple loops

Technical Specifications

• Integrated Connection Type:
  • Non-isolated serial link (2 female mini DIN RS485) 19.2 kbit/s
  • Ethernet TCP/IP RJ45 Port
  • Ethernet 10BASE-T/100BASE-TX
• Communication Module Processor Capacity: 4
• Memory Description:
  • Internal RAM (with PCMCIA card) 160 kB data
  • Internal RAM (with PCMCIA card) 768 kB program
  • Internal RAM (without PCMCIA card) 160 kB program and data
  • PCMCIA card 16384 kB additional data storage
• Maximum Size of Object Areas:
  • 64 %KWi constant words located internal data
  • 64 %MWi internal words located internal data
  • 64 kB (DFB and EFB function blocks) unlocated internal data
  • 64 kB (elementary and derived data) unlocated internal data
  • 8132 %Mi located internal bits
• Application Structure:
  • 64 event tasks
  • 1 master task
  • 1 fast task
• Execution Time per Instruction:
  • 0.19 µs Boolean without PCMCIA card
  • 0.25 µs word or fixed-point arithmetic without PCMCIA card
  • 1.75…2.6 µs floating points with PCMCIA card
  • 1.75…2.6 µs floating points without PCMCIA card
  • 0.21 µs Boolean with PCMCIA card
  • 0.42 µs word or fixed-point arithmetic with PCMCIA card
• Number of Instructions per ms:
  • 2.53 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card
  • 3.7 Kinst/ms 100 % Boolean with PCMCIA card
  • 3.71 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card
  • 4.76 Kinst/ms 100 % Boolean without PCMCIA card
• System Overhead:
  • 0.3 ms fast task
  • 1 ms master task
• Marking: CE
• Local Signalling:
  • 1 LED (green) for Ethernet TCP/IP port ready (RUN)
  • 1 LED (green) for processor running (RUN)
  • 1 LED (green) for collision detection (COL)
  • 1 LED (red) for Ethernet TCP/IP port fault (ERR)
  • 1 LED (red) for I/O module or configuration fault (I/O)
  • 1 LED (red) for processor or system fault (ERR)
  • 1 LED (red) for activity on TER or AUX terminal port (TER)
  • 1 LED (yellow) for Ethernet link diagnostics (STS)
  • 1 LED (yellow) for reception activity (RX)
  • 1 LED (yellow) for transmission activity (TX)
• Current Consumption: 1650 mA 5 V DC
• Module Format: Double
• Net Weight: 0.093 lb (US) (0.042 kg)

Environment

• Standards:
  • CSA C22.2 No 213 Class I Division 2 Group B
  • IEC 61131-2
  • 93/68/EEC
  • 89/336/EEC
  • UL 508
  • 92/31/EEC
