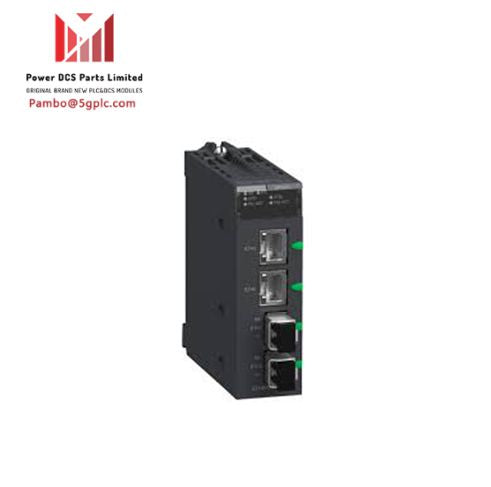

Schneider Electric BMXNRP0201 Ethernet Communication Module

Overview

The SCHNEIDER BMXNRP0201 is a fiber optic repeater module that belongs to the Modicon X80 range. It is designed for use with Modicon M580 and M340 Programmable Automation Controllers (PACs) and supports single-mode fiber optic communication. The BMXNRP0201 offers a plug-and-play solution, reduced startup time, and hot swap functionality.

Features:

• Single-mode fiber optic communication
• 1310nm wavelength
• 2 RJ45 ports with 100BASE-TX Ethernet
• 2 LC fiber optic ports
• Hot swap function
• 24V rated voltage
• 200mA maximum current consumption
• Operating temperature range: 0°C to 60°C
• Dimensions: 86mm x 32mm x 100mm

Technical specification:

• Fiber optic type: Single mode
• Wavelength: 1310nm
• Ethernet ports: 2 x RJ45 with 100BASE-TX
• Fiber optic ports: 2 x LC
• Hot swap function: Yes
• Rated voltage: 24V
• Maximum current consumption: 200mA
• Operating temperature range: 0°C to 60°C
• Dimensions: 86mm x 32mm x 100mm
