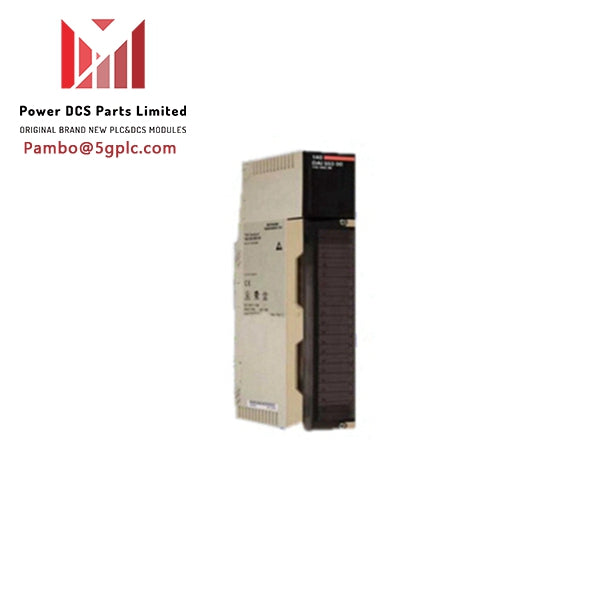

Schneider BMXAMI0800 Analog Input Module
Specifications
Manufacturer: Schneider
Product No.: BMXAMI0800
Condition: 10 Items in Stock
Product Type: Automation Control Components
Product Origin: France
Payment:T/T, Western Union
Weight: 380g
Shipping port: Xiamen
Warranty: 12 months
Product details
Description
Overview
The BMXAMI0800 is a non-isolated analog input module for the Modicon X80 programmable logic controller (PLC) system. It features 8 high-speed, high-precision analog inputs that can be configured to accept a variety of voltage and current signals. The module is designed for use in demanding industrial applications that require fast, accurate, and reliable analog signal processing.
Features:
Technical specification:
Contact US
Email: Pambo@5gplc.com
Tel:+86 13306036024 (Whats-app, Skype)
Welcome to consult our staff. We will give you the best service and price. Thank you
The BMXAMI0800 is a non-isolated analog input module for the Modicon X80 programmable logic controller (PLC) system. It features 8 high-speed, high-precision analog inputs that can be configured to accept a variety of voltage and current signals. The module is designed for use in demanding industrial applications that require fast, accurate, and reliable analog signal processing.
Features:
- 8 high-speed, high-precision analog inputs
- Non-isolated channels
- Multiple input ranges:
- Voltage: ±10 V, 0...10 V, 0...5 V, 1...5 V, ±5 V
- Current: ±20 mA, 0...20 mA, 4...20 mA
- Low power consumption: 1.04 W at 24 V DC
- 28-pin connector for electrical connection
- IP20 rated for protection against dust and water ingress
- Operating temperature range: -20°C to +60°C
- RoHS compliant
- Input type Analog
- Number of inputs 8
- Input isolation Non-isolated
- Input ranges Voltage: ±10 V, 0...10 V, 0...5 V, 1...5 V, ±5 V; Current: ±20 mA, 0...20 mA, 4...20 mA
- Measurement resolution 0.36 mV
- Accuracy ±0.1% of full scale
- Conversion time 1 μs
- Power consumption 1.04 W at 24 V DC
- Connector type 28-pin
- IP rating IP20
- Operating temperature range -20°C to +60°C
- RoHS compliance Yes
