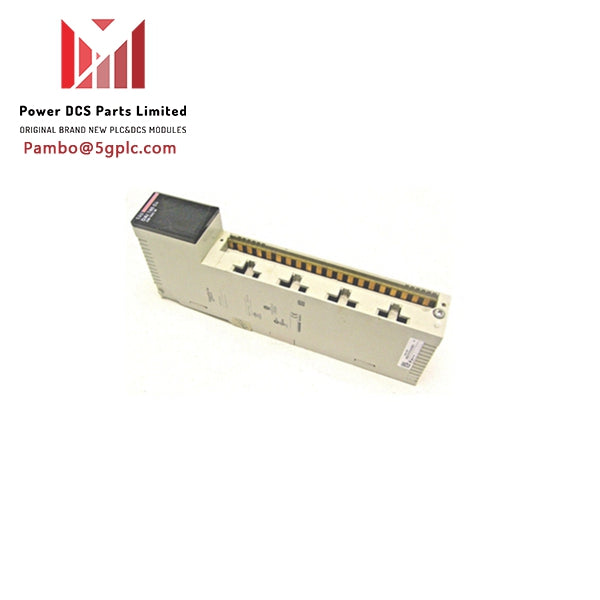

Schneider 171CCC96020 M1/M1E Processor Adaptor

Description

The 171CCC96020 is a cutting-edge M1/M1E processor adaptor designed by Schneider Electric to enhance automation capabilities within the Modicon Momentum automation platform. Packed with advanced features and robust performance, this processor adaptor is critical to industrial automation systems.

Technical Specifications

Main

• Range of Product: Modicon Momentum automation platform
• Product or Component Type: M1/M1E processor adaptor
• Concept: Transparent Ready
• Level or Class: Class B10
• Software Designation:
  • Concept V2.6
  • Modsoft >= V2.5
  • ProWORX NxT V2.0
  • ProWORX 32

Communication Port Protocol

• Ethernet

Processor Name

• X 86 based (INTEL, AMD)

Clock Frequency

• 50 MHz

Complementary

• Web Services:
  • Web page loader software tool
  • Rack viewer
  • Data editor
  • Web page loader
• Ethernet Service:
  • I/O scanning
  • Modbus TCP messaging
• Discrete I/O Processor Capacity:
  • 8192 I/8192 O
• Memory Type:
  • 512 KB flash
  • 544 kB RAM
• Memory Description:
  • Program memory 18 kB LL984
  • Data 24 kB
• Material: Lexan
• Word Length: 16 bit
• [Us] Rated Supply Voltage: 5.0 V DC +/-5 %
• Supply: By Momentum I/O base
• Exact Time for 1 Kinstruction: 1 ms
• Register I/O Processor Capacity: 26048 I/26048 O
• I/O Limit Processor Capacity: 8192 bits max
• I/O Words/Drop:
  • 128 I/O Concept
  • 80 I/O ProWORX
• Number of Ports:
  • 1 I/O bus
  • 1 ETHERNET
• Marking: CE
• Net Weight: 0.093 lb(US) (0.042 kg)

Environment

• Protective Treatment: TC
• Ambient Air Temperature for Operation: 32…140 °F (0…60 °C)
• Ambient Air Temperature for Storage: -40…185 °F (-40…85 °C)
• Relative Humidity: 5…96 % without condensation
• Operating Altitude: 6561.68 ft (2000 m)
• Shock Resistance: <= 15 gn peak 11 ms half sine wave acceleration
• Vibration Resistance:
  • 0.75 mm d.a
  • 1 gn

Product Certifications

• Nema Type 250
• FM Class 1 Division 2
• cUL
• UL

Ordering and Shipping Details

• Category: 18206-MOMENTUM PROCESSORS, I/O BASES, CONN.
• Discount Schedule: PC31
• GTIN: 3595860019318
• Returnability: No
• Country of Origin: FR

Packing Units

• Unit Type of Package 1: PCE
  • Number of Units in Package 1: 1
  • Package 1 Height: 2.2 in (5.5 cm)
  • Package 1 Width: 7.09 in (18 cm)
  • Package 1 Length: 10.2 in (26 cm)
  • Package 1 Weight: 7.1 oz (202 g)
• Unit Type of Package 2: S02
  • Number of Units in Package 2: 4
  • Package 2 Height: 5.9 in (15 cm)
  • Package 2 Width: 11.8 in (30 cm)
  • Package 2 Length: 15.7 in (40 cm)
  • Package 2 Weight: 2.482 lb(US) (1.126 kg)
• Unit Type of Package 3: S03
  • Number of Units in Package 3: 8
  • Package 3 Height: 11.8 in (30 cm)
  • Package 3 Width: 11.8 in (30 cm)
  • Package 3 Length: 15.7 in (40 cm)
  • Package 3 Weight: 4.698 lb(US) (2.131 kg)
