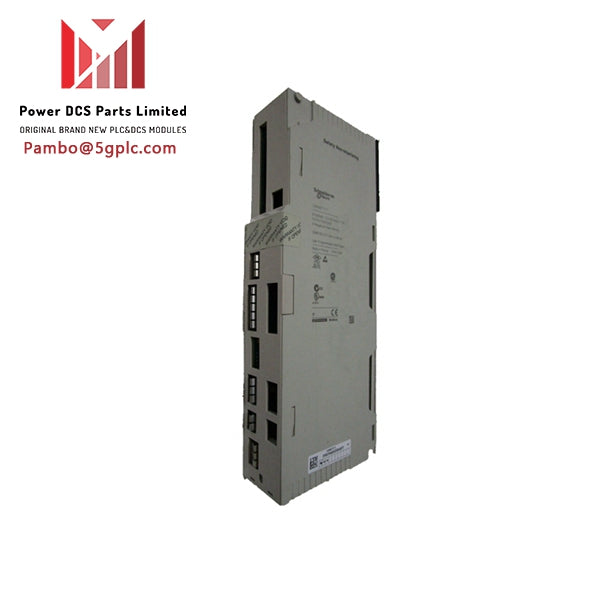

Schneider 140NOE77100 Ethernet network TCP/IP Module

Description

The Schneider 140NOE77100 is an Ethernet network TCP/IP module designed for the Modicon Quantum automation platform. It provides high-speed communication capabilities and supports various network protocols, making it suitable for industrial automation applications.

Specifications

Main

• Range of Product: Modicon Quantum automation platform
• Product or Component Type: Ethernet network TCP/IP module
• Concept: Transparent Ready
• Web Server: Class B20
• Web Services:
  • Rack viewer
  • Diagnostics via predefined web pages
  • Data Editor (via PC terminal)
• Communication Service:
  • Modbus TCP messaging
  • I/O scanning
• Communication Port Protocol: Ethernet Modbus TCP/IP
• Physical Interface:
  • MT/RJ - 100BASE-FX fiber optic
  • RJ45 - 10BASE-T/100BASE-TX twisted pair
• Transmission Rate: 10/100 Mbit/s

Complementary Specifications

• Redundancy: Yes, hot standby redundant architecture
• Supply: Via the power supply of the rack
• Marking: CE
• Local Signalling:
  • For 10 Mbps or 100 Mbps data rate (10 MB/100 MB): 1 LED
  • For collision detection (Coll): 1 LED
  • For download mode (Kernel): 1 LED
  • For Ethernet module fault (Fault): 1 LED
  • For Ethernet network status (RUN): 1 LED
  • For full-duplex mode (Fduplex): 1 LED
  • For module ready (Ready): 1 LED
  • For network active (Link): 1 LED
  • For rack operational (Active): 1 LED
  • For transmission/reception activity (TxAct/RxAct): 1 LED
• Current Consumption: 750 mA at 5 V DC
• Module Format: Standard
• Net Weight: 0.761 lb (0.345 kg)

Environment

• IP Degree of Protection: IP20
• Product Certifications:
  • cUL
  • UL 508
• Standards:
  • FM Class 1 Division 2
  • CSA C22.2 No 142
• Resistance to Electrostatic Discharge:
  • 4 kV contact IEC 801-2
  • 8 kV on air IEC 801-2
• Resistance to Electromagnetic Fields:
  • 9.1 V/m (10 V/m) 80…1000 MHz IEC 801-3
• Ambient Air Temperature for Operation: 32…140 °F (0…60 °C)
• Ambient Air Temperature for Storage: -40…185 °F (-40…85 °C)
• Relative Humidity: 95% without condensation
• Operating Altitude: <= 14763.78 ft (4500 m)

Ordering and Shipping Details

• Category: 18150-QUANTUM CONTROLLERS, HSBY, COMM.
• Discount Schedule: PC21
• GTIN: 3595860025609
• Returnability: No
• Country of Origin: FR
