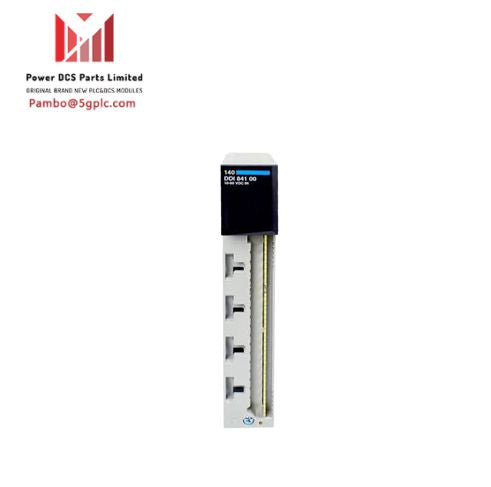

Schneider 140DDI84100 Discrete Input Module

Specifications

  • Manufacturer: Schneider

  • Product No.: 140DDI84100

  • Condition: 10 Items in Stock

  • Product Type: Discrete Input Module

  • Product Origin: France

  • Payment:T/T, Western Union

  • Weight: 300g

  • Shipping port: Xiamen

  • Warranty: 12 months

Product details

Description

Description

The Schneider 140DDI84100 is a discrete input module designed for the Modicon Quantum automation platform. It features 16 discrete inputs and is suitable for various industrial applications.

Features

  • Product Type: Discrete Input Module
  • Number of Inputs: 16
  • Group of Channels: 8
  • Logic Input: Positive (sink)
  • Input Voltage Limits: 10…60 V
  • Input Voltage:
    • 12 V: 5…10 mA DC
    • 24 V: 6…30 mA DC
    • 48 V: 2…15 mA DC
    • 60 V: 1…5 mA DC
  • Voltage State 1 Guaranteed:
    • 11…24 V
    • 24 V: +/- 20%
    • 34…48 V
    • 48 V: +/- 20%
    • 45…60 V
    • 60 V: +/- 20%
    • 9…12 V
    • 12 V: +/- 5%
  • Voltage State 0 Guaranteed:
    • 0…1.8 V
    • 12 V: +/- 5%
    • 0…10 V
    • 48 V: +/- 20%
    • 0…5 V
    • 24 V: +/- 20%
    • 0…9 V
    • 60 V: +/- 20%
  • Absolute Maximum Voltage: 75 V
  • Addressing Requirement: 1 input word
  • Response Time:
    • 4 ms (state 0 to state 1)
    • 4 ms (state 1 to state 0)
  • Switching Frequency: <= 100 Hz
  • Isolation:
    • 2500 Vrms DC for 1 minute (between group and bus)
    • 700 Vrms DC for 1 minute (between group)
  • Power Dissipation: 1 W + (0.62 x number of points on)
  • Marking: CE
  • Local Signalling:
    • 1 LED (green) for bus communication (Active)
    • 1 LED (red) for external fault detected (F)
    • 16 LEDs (green) for input status
  • Bus Current Requirement: 200 mA
  • Module Format: Standard
  • Net Weight: 0.3 kg

Technical Specifications

  • Product Certifications: FM Class 1 Division 2, C-Tick
  • Standards: UL 508, CSA C22.2 No 142
  • Resistance to Electrostatic Discharge:
    • 4 kV contact (IEC 801-2)
    • 8 kV air (IEC 801-2)
  • Resistance to Electromagnetic Fields: 10 V/m (80…2000 MHz, IEC 801-3)
  • Operating Temperature: 0…60°C
  • Storage Temperature: -40…85°C
  • Relative Humidity: 95% without condensation
  • Operating Altitude: ≤ 5000 m
  • Packing Units:
    • Package 1: 1 unit, 130 g, 2.5 cm height, 8 cm width, 10 cm length
    • Package 2: 7 units, 3.749 kg, 30 cm height, 30 cm width, 40 cm length
  • Sustainability: Green Premium product, EU RoHS Directive compliant, Mercury free, China RoHS Regulation compliant, WEEE compliant
