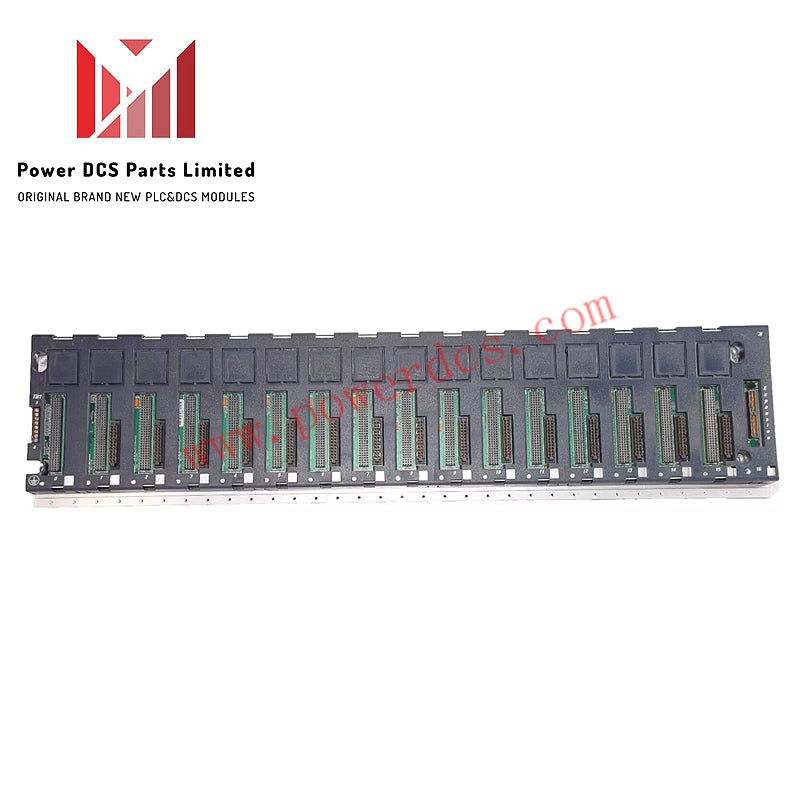

PACSystem RX3i IC695CHS016 GE Fanuc Universal Backplane

Specifications

  • Manufacturer: GE

  • Product No.: IC695CHS016

  • Condition： 10 Items in Stock

  • Product Type: Universal Backplane

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 3800g

  • Shipping port: Xiamen

  • Warranty: 12 months

Product details

Description

Description

The IC695CHS016 is a universal backplane designed for use with the PACSystem RX3i and Series 90-30 I/O systems, offering compatibility with various modules.

Compatibility

  • Systems: RX3i PACSystem, Series 90-30 I/O
  • Supported Modules: RX3i, Series 90-30 I/O, and option modules

Power Ratings

  • Current Rating:
    • 600 mA at 3.3 VDC
    • 240 mA at 5 VDC
  • Input Voltage: +24 Volts

Dimensions

  • Dimensions: 23.7 in (W) x 5.87 in (D) x 5.57 in (H)

Installation Requirements

  • Mounting: Rack
  • Protection: NEMA/UL Type 1 (IP20)
  • Wire Size: 14 to 22 AWG

Bus Connectors

  • Types: PCI Bus / Serial Bus

Power Consumption

  • Internal Power:
    • 240 milliamps at 5 Volts DC
    • 600 milliamps at 3.3 Volts DC

Terminals

  • Input Terminals:
    • TB1; Terminal 7: Isolated 24VDC
    • Terminal 8: Isolated ground

Hot Tags :

Backplane PACSystem RX3i Universal Backplane
