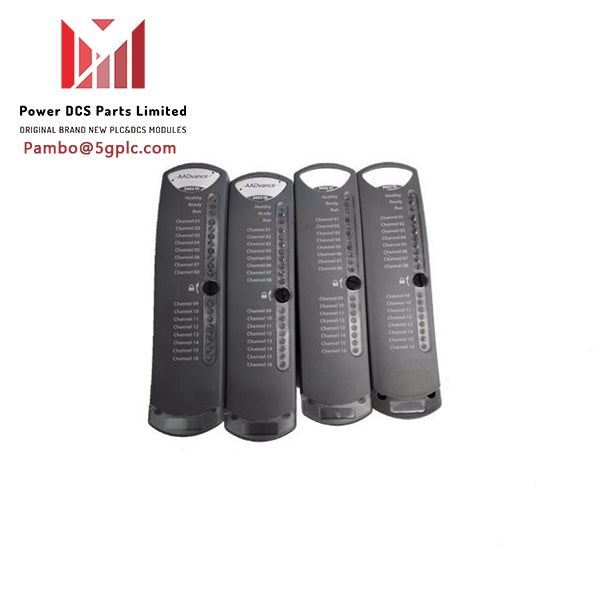

ICS Triplex T9432 Analog Input Module

Overview
The ICS Triplex T9432 is a 16-channel analog input module for use in safety instrumented systems (SIS) applications. It is designed to provide high-accuracy, reliable, and fault-tolerant measurement of analog signals in hazardous environments. The T9432 is part of the ICS Triplex AADvance family of SIS products, which are certified to meet the requirements of IEC 61508 SIL 2 and SIL 3.

Features

1. 16-channel analog input
2. High accuracy: ± 0.05% of full scale
3. Low drift: 0.01% per °C
4. Fast response time: 6 ms
5. High isolation: 1.5 kVdc
6. Redundant power supply
7. Hot swappable
8. Fault tolerance: 1oo1D, 1oo2D, 2oo3D

Technical specifications

1. Input range: 4 mA to 20 mA
2. Resolution: 15 bits
3. Update rate: 10 ms
4. Power consumption: 4 W
5. Operating temperature: -40 °C to +70 °C
6. Storage temperature: -40 °C to +85 °C
7. Humidity: 5% to 95% RH, non-condensing
8. Vibration: 0.5 g RMS, 5 Hz to 500 Hz
9. Shock: 15 g, 11 ms
10. EMC: EN 61000-6-2, EN 61000-6-3
