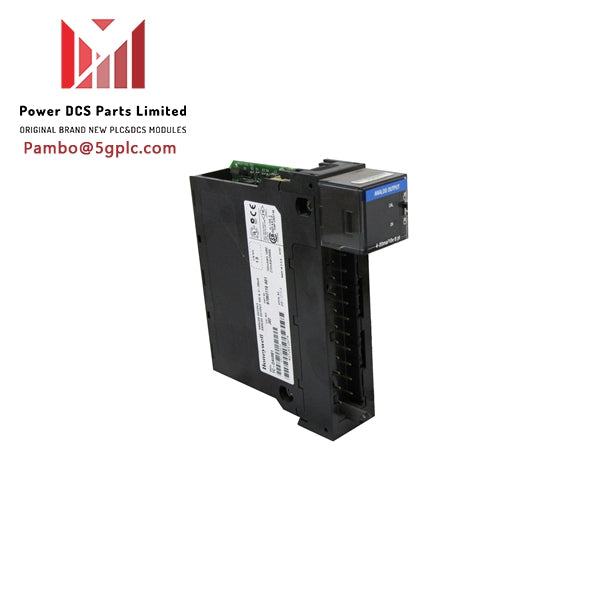

Honeywell TC-IXL061 Thermocouple Input Module In Stock Brand New

Specifications

  • Manufacturer: Honeywell

  • Product No.: TC-IXL061

  • Condition： 10 Items in Stock

  • Product Type: Analog Input Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 2010g

  • Shipping port: Xiamen

  • Warranty: 12 months

Product details

Description

Overview
The Honeywell TC-IXL061 is a thermocouple input module that is designed to be used with Honeywell's line of programmable logic controllers (PLCs). It is used to convert the analog signal from a thermocouple into a digital signal that can be read by the PLC. The TC-IXL061 can support a variety of thermocouple types, including J, K, T, E, C, R, S, and B.

Features
  • Supports a variety of thermocouple types
  • 250mA @ 5.1 VDC, 125mA @ 24VDC input current
  • Cold junction compensation
  • Linearization
  • Signal filtering
  • Fault detection
Technical Specifications
  1. Specification    Value
  2. Input range    -200°C to 1200°C (-328°F to 2192°F)
  3. Accuracy    ±0.1% of full scale
  4. Resolution    0.1°C (0.18°F)
  5. Response time    2 seconds
  6. Power consumption    5W
  7. Operating temperature    -40°C to 70°C (-40°F to 158°F)
  8. Storage temperature    -40°C to 85°C (-40°F to 185°F)
  9. Humidity    0% to 95% RH, non-condensing
  10. Vibration    5g RMS, 10 to 500 Hz
  11. Shock    30g, 11 ms half-sine
  12. Dimensions    3.7 x 2.2 x 1.2 inches
  13. Weight    0.5 pounds
  14. Certifications    CE, RoHS
