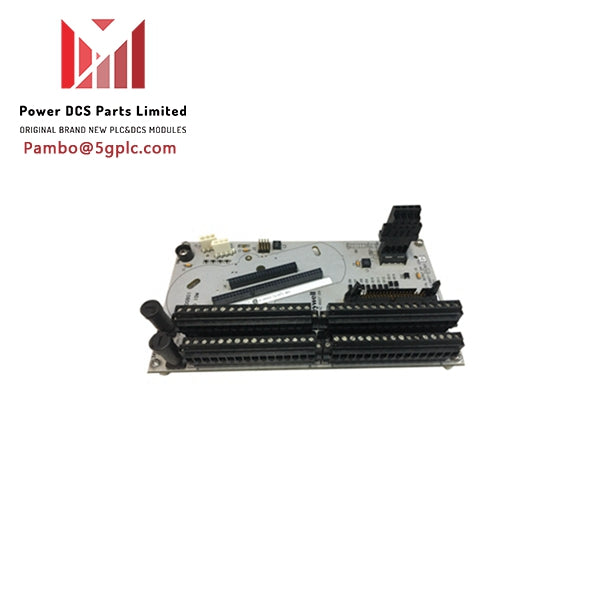

Honeywell CC-TPIX11 Pulse Input Module

Specifications

  • Manufacturer: Honeywell

  • Product No.: CC-TPIX11

  • Condition： 10 Items in Stock

  • Product Type: Automation Control Components

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 520g

  • Shipping port: Xiamen

  • Warranty: 12 months

Product details

Description

Overview
The Honeywell CC-TPIX11 is a redundant pulse input module for the Experion Series C distributed control system (DCS). It is designed to receive and process pulse signals from a variety of sources, such as flow meters, gas meters, and turbine generators. The module provides two redundant pulse input channels, each of which can support either a single pulse input or a dual pulse input. The module also provides two output channels that can be used to drive external devices, such as alarms or indicators.


Features
  1. Redundant pulse input channels
  2. Supports single and dual pulse inputs
  3. High-impedance, differential voltage inputs
  4. Optically isolated inputs
  5. Wide frequency range
  6. Two output channels
  7. DIN rail mountable
Technical Specifications
  1. Input type: High-impedance, differential voltage, optically isolated (1000 VDC)
  2. Frequency range: 0 - 100 KHz Single Channel, 0 – 10 KHz Dual Pulse Channel
  3. Frequency accuracy ( 0.5 Hz – 100 KHz): ±0.1% of full scale
  4. Input resolution: 0.1 pulse
  5. Output type: Dry contact, 3A maximum
  6. Output voltage: 24 VDC
  7. Output current: 0.1A maximum
  8. Power requirements: 24 VDC, 200 mA maximum
  9. Operating temperature: -40 to 70°C
  10. Storage temperature: -40 to 85°C
  11. Humidity: 0 to 95% non-condensing
  12. Vibration: 0.05g RMS, 10 to 500 Hz
  13. Shock: 5g, 20 ms half-sine
  14. EMC: EN 61000-6-2, EN 61000-6-3
  15. Dimensions: 12” x 3.9” x 3.4”
  16. Weight: 2.2 lbs




Hope anyone inquires from us, pls contact below:
Pambo@5gplc.com
Tel:+86 13306036024  (Whats-app, Skype)





1. Lower your support costs
2. Provide ongoing availability of automation replacement parts
Quantity available: 10
Warranty: 12 months.
Technical specifications, manuals, and data sheets

Inquiry details, pls pay attention as below:
*All quotes based on EXW only
*Shipping time:5-7 days, via DHL/TNT/UPS/EMS/Fedex...
*Payment terms: T/T Payment in Advance
