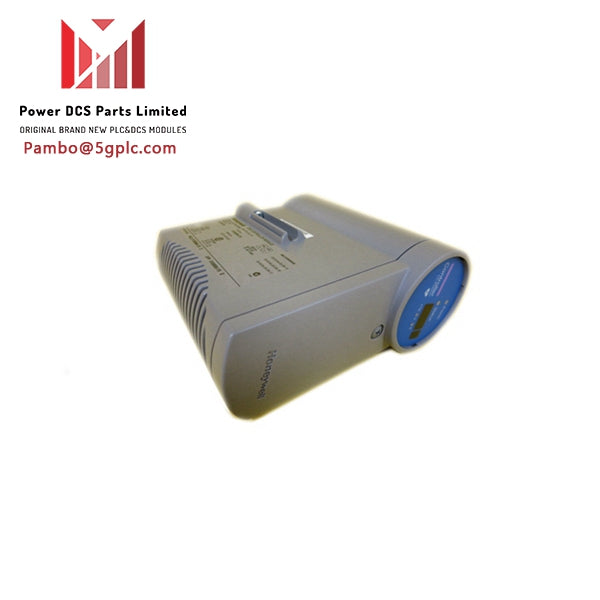

Honeywell CC-PAIH01 High-Level Analog Input Module

Overview
The Honeywell CC-PAIH01 is an analog input module designed for use within the Experion Series-C control system. It provides a bridge between field instruments and the control system, allowing for the integration of real-world process signals.


Features

• High-level analog input: Handles voltage signals (0-5V, 1-5V, 0.4-2V) on channels 13-16.
• HART communication: Supports HART protocol for advanced device diagnostics and configuration.
• Combined I/O and field terminations: Simplifies wiring and reduces cabinet space requirements.

Technical Specifications

• Number of Channels: 16 (12 single-ended, 4 differential)
• Input Range: Voltage (as listed above) or 4-20mA current loop (with 250Ω resistor)
• A/D Converter Resolution: 16 bits
• Accuracy: ±0.075% of full-scale (typical)
