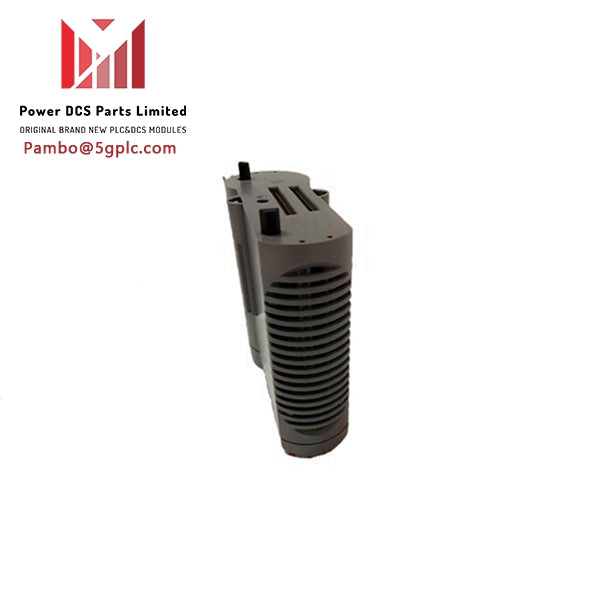

Honeywell 8C-PAON01 Analog Output Module
Specifications
Manufacturer: Honeywell
Product No.: 8C-PAON01
Condition： 10 Items in Stock
Product Type: Automation Control Components
Product Origin: USA
Payment:T/T, Western Union
Weight: 1010g
Shipping port: Xiamen
Warranty: 12 months
Product details
Description
Overview
The Honeywell 8C-PAON01 is an analog output module part of the Experion Series-C I/O family. It is designed for use with the C300 Controller in non-redundant and redundant configurations. The module provides 16 high-level analog outputs with a 4-20 mA output range. It features low output ripple and temperature drift, making it suitable for a wide range of applications.
Features
Hope anyone inquires from us, pls contact below:
Pambo@5gplc.com
Tel:+86 13306036024 (Whats-app, Skype)
1. Lower your support costs
2. Provide ongoing availability of automation replacement parts
Quantity available: 10
Warranty: 12 months.
Technical specifications, manuals, and data sheets
Inquiry details, pls pay attention as below:
*All quotes based on EXW only
*Shipping time:5-7 days, via DHL/TNT/UPS/EMS/Fedex...
*Payment terms: T/T Payment in Advance
The Honeywell 8C-PAON01 is an analog output module part of the Experion Series-C I/O family. It is designed for use with the C300 Controller in non-redundant and redundant configurations. The module provides 16 high-level analog outputs with a 4-20 mA output range. It features low output ripple and temperature drift, making it suitable for a wide range of applications.
Features
- 16 high-level analog outputs
- 4-20 mA output range
- Low output ripple (< 100 mV peak-to-peak at power line frequency, across 250 Ω load)
- Low output temperature drift (0.005% of Full Scale/°C)
- Output readback
- Suitable for non-redundant and redundant configurations
- Power Requirements: 24 VDC nominal, 21.6 to 26.4 VDC range
- Power Consumption: 2.5 W maximum
- Operating Temperature: -40 to 70°C (-40 to 158°F)
- Storage Temperature: -40 to 85°C (-40 to 185°F)
- Humidity: 5 to 95% RH, non-condensing
- Vibration: 0.05 g rms, 5 to 500 Hz
- Shock: 5 g, 20 ms half-sine pulse
- Dimensions: 6 x 12 inches (152 x 305 mm)
- Weight: 2.2 pounds (1.0 kg)
Hope anyone inquires from us, pls contact below:
Pambo@5gplc.com
Tel:+86 13306036024 (Whats-app, Skype)
1. Lower your support costs
2. Provide ongoing availability of automation replacement parts
Quantity available: 10
Warranty: 12 months.
Technical specifications, manuals, and data sheets
Inquiry details, pls pay attention as below:
*All quotes based on EXW only
*Shipping time:5-7 days, via DHL/TNT/UPS/EMS/Fedex...
*Payment terms: T/T Payment in Advance
