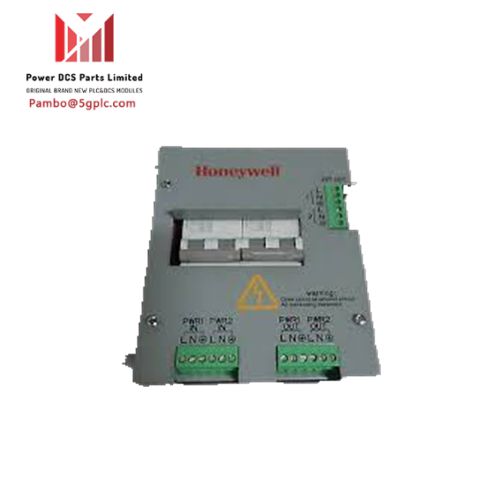

Honeywell 51307039-100 Module Circuit Breaker Box Assembly

Overview
The Honeywell 51307039-100 is a breaker box module assembly for the Experion Process Knowledge System (PKS). It is a non-redundant, coated module assembly that provides 16 digital inputs and 16 digital outputs. The 51307039-100 is designed for use in harsh environments and is suitable for a wide range of industrial automation applications

Features

• Non-redundant
• Coated to protect from harsh environments
• 16 digital inputs
• 16 digital outputs
• High-speed counting (up to 20 kHz)
• Debouncing circuitry to eliminate false counts
• Filtering to remove noise and jitter
• Alarm generation based on digital inputs and outputs

Technical Specifications

• Input voltage: 24 VDC
• Input current: 5 mA minimum, 10 mA maximum
• Output voltage: 24 VDC
• Output current: 100 mA maximum per channel, 3.2 A maximum per module
• Input channels: 16
• Output channels: 16
• Dimensions: 92 mm x 114 mm x 25 mm (3.62 in x 4.49 in x 0.98 in)
• Weight: 0.2 kg (0.44 lb)
