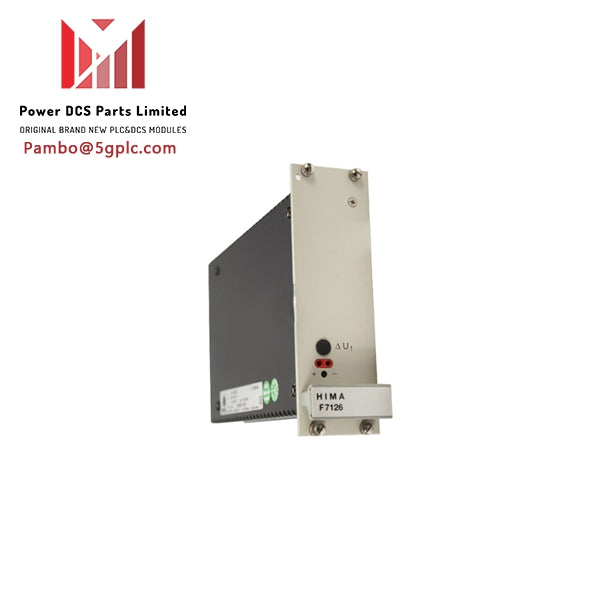

HIMA F7126-e Three-phase Power Supply Module Brand New

Specifications

  • Manufacturer: HIMA

  • Product No.: F7126-e

  • Condition： 10 Items in Stock

  • Product Type: Automation Control Components

  • Product Origin: Germany

  • Payment:T/T, Western Union

  • Weight: 3010g

  • Shipping port: Xiamen

  • Warranty: 12 months

Product details

Description

Overview
The HIMA F7126-e is a three-phase power supply module designed for use in safety-critical industrial automation applications. It provides a stable and reliable 5VDC power supply for various safety-related systems, including:

Safety PLCs
Safety I/O modules
Safety sensors and actuators
The F7126-e is certified for use in SIL 2 and SIL 3 applications according to IEC 61508. It also meets the requirements of IEC 60529 for IP67 protection against dust and water ingress.


Features
  • High reliability: The F7126-e is designed for a service life of at least 20 years. It features redundant components and extensive diagnostics to ensure continuous operation.
  • High availability: The F7126-e has a mean time between failures (MTBF) of over 100,000 hours. This means that it is unlikely to fail during normal operation.
  • Short circuit protection: The F7126-e has built-in short circuit protection to prevent damage to the module or connected devices.
  • Overvoltage protection: The F7126-e has built-in overvoltage protection to protect connected devices from damage.
  • Thermal protection: The F7126-e has built-in thermal protection to prevent overheating.
  • Wide input voltage range: The F7126-e accepts a wide range of input voltages, from 18VDC to 36VDC.
  • Adjustable output voltage: The output voltage of the F7126-e can be adjusted from 5VDC to 5.5VDC.
  • Parallel operation: Up to four F7126-e modules can be operated in parallel to provide up to 40A of output current.

Technical Specifications
  • Input voltage range    18VDC to 36VDC
  • Output voltage    5VDC (adjustable from 5VDC to 5.5VDC)
  • Output current    10A (current limitation set to 13A)
  • Output ripple and noise    < 50mVpp
  • Efficiency    > 85%
  • Operating temperature range    -20°C to +70°C
  • Storage temperature range    -40°C to +85°C
  • Relative humidity    0% to 95% (non-condensing)
  • Vibration    0.5g RMS, 10Hz to 500Hz
  • Shock    5g, 11ms half-sine
  • Enclosure rating    IP67
  • Dimensions    125mm x 80mm x 40mm
  • Weight    3kg
