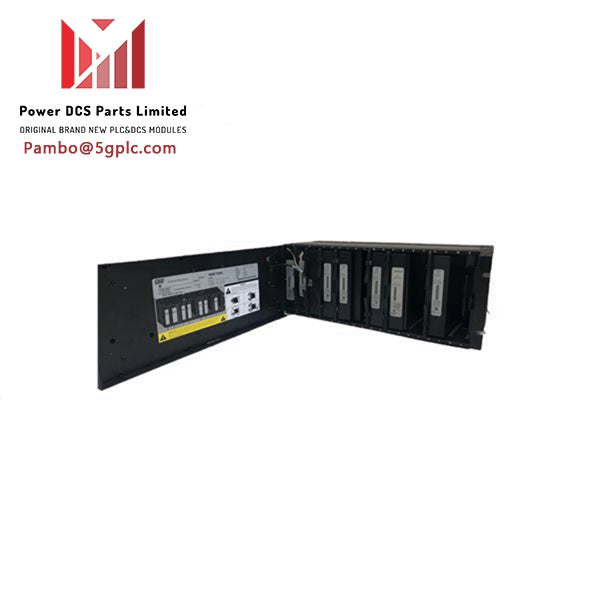

GE UR9NV Versatile Feeder Protection Relay Module In Stock

Overview

The GE UR9NV is a versatile feeder protection relay designed to safeguard medium- and high-voltage feeders from various faults and abnormal conditions.

Technical Specifications

• Number of I/O Channels: 8 configurable analog output channels
• Output Voltage Range: 0 to 10 V DC
• Output Current Range: 4 mA to 20 mA
• Accuracy: ±0.1%
• Resolution: 16 bits
• Noise Level: <10 µV
• Operating Temperature Range: -40°C to +85°C
• Dimensions: 170 mm (W) x 100 mm (H) x 45 mm (D)
• Weight: 0.3 kg

Features

• Detailed Specifications: A comprehensive list of technical parameters such as:
• Input voltage and current ranges
• Operating temperature
• Dimensions and weight
• Communication protocols supported
• Mounting options
• Performance Characteristics: Information about the relay's accuracy, speed, and reliability.
• Example: The UR9NV offers high-speed fault detection and clearance, ensuring maximum system availability.
