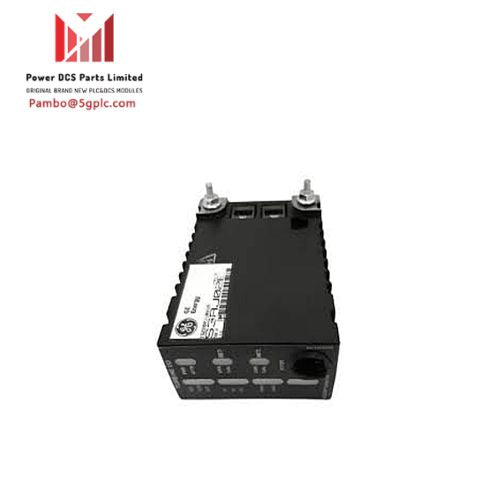

GE IS220PTURH1A Primary Turbine Trip Pack

Description

The GE IS220PTURH1A is a Primary Turbine Trip Pack used in the Mark VIe control systems. It provides an electrical interface between a turbine control terminal board and one or two Ethernet networks. This pack is designed to manage turbine speed and trip functions.

Features

• Connects turbine control terminal board to one or two Ethernet networks
• Outputs through a DC-62 pin connector
• Four passive magnetic speed inputs
• Circuit sensitivity to detect 2-RPM turning gear speed
• Median speed signal used for speed control and primary overspeed trip signal
• LED indicators for network status, power, and attention
• Flash memory and RAM for data storage
• Auto-reconfiguration option available through ToolboxST’s Component Editor
• Manual reconfiguration possible using the Component Editor
• Internal temperature sensor
• Reset circuit

Technical Specifications

• Compatibility: Mark VIe control systems
• Function: Primary Turbine Trip Pack
• Power Supply: Local power sources
• Memory: Flash memory and RAM
• Indicators: LED indicators for network status, power, and attention
• Configuration: Auto and manual reconfiguration options available
• Speed Inputs: Four passive magnetic speed inputs
• Connector: DC-62 pin connector
