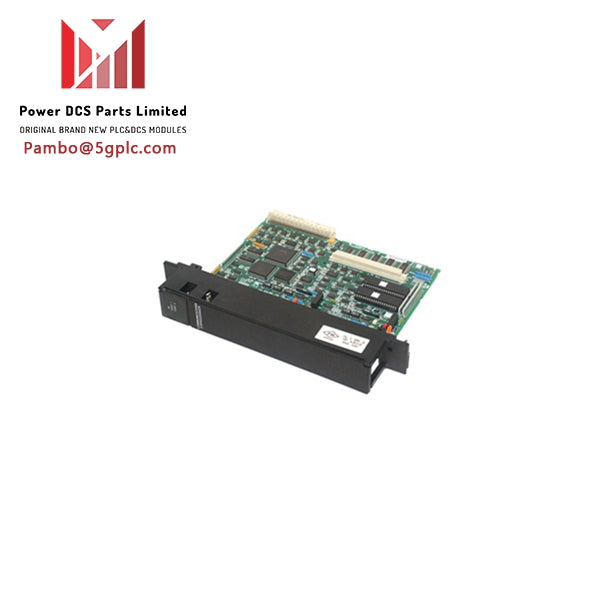

GE IS210BPPCH1AEC I/O Pack Processor Card

Description

The IS210BPPCH1AEC is an I/O Pack Processor Card designed for use in the Mark VIe control system by General Electric. This processor card is an upgraded version of earlier BPPB I/O packs and is used in systems with ControlST V04.04 or later. It is not designed for use on Mark VIeS systems but can work with earlier BPPB-based I/O packs in TMR (triple modular redundant) systems.

Features

• Surface Mount Technology (SMT): Utilizes SMT for efficient and compact design.
• Dual Ethernet Ports: Equipped with two Ethernet ports for network connectivity.
• Diagnostic Signals:Provides diagnostic signals to UCPA with red and green ATTN LEDs.

• Compatibility:Compatible with various processor boards such as YAICS1B, YDIAS1B, YDOAS1B, PVIBH1B, and YVIBS1B.

• Reset Circuits:Includes reset circuits with a hardware watchdog timer.

• Status Indication LEDs:Features status indication LEDs for easy monitoring.


Technical Specifications

• Part Number: IS210BPPCH1AEC
• Series: Mark VIe

• Nominal Voltage Range:9-16 VDC with Voltage at 12 VDC

• Temperature Sensor:Equipped with an internal temperature sensor

• Manual:Refer to GEH-6721 for detailed information
