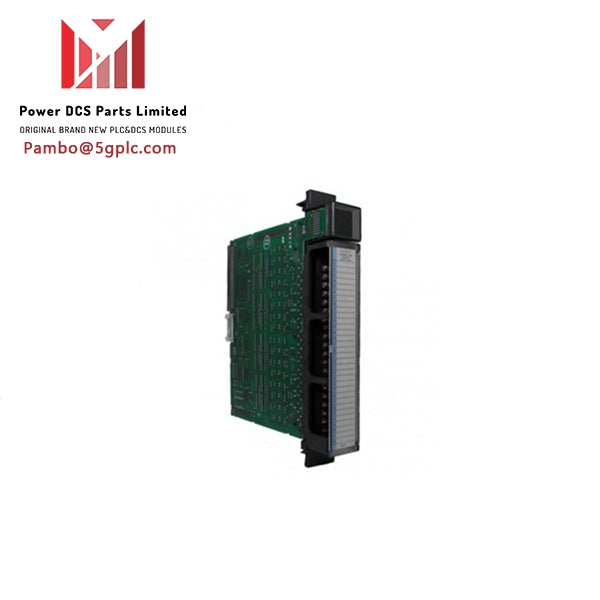

GE IC697BEM711 BRM Module In Stock

Overview
The GE Fanuc IC697BEM711 is a Bus Receiver Module (BRM) from the Series 90-70 family of programmable logic controllers (PLCs). It is designed to expand the I/O capacity of a Series 90-70 PLC system by providing a high-speed parallel bus expansion interface. The IC697BEM711 can support up to 7 expansion racks, each of which can contain up to 16 I/O modules.


Key Features and Functionality:

1. High-speed parallel bus expansion interface with a data rate of 500 Kbytes/sec
2. Supports up to 7 expansion racks
3. Holds the last state of output modules in the event of loss of communications with the CPU
4. Permits isolation and repair of a faulty module within a rack
5. Configurable using MS-DOS or Windows programming software

Technical Specifications

1. Bus Type: High-speed parallel bus
2. Data Rate: 500 Kbytes/sec
3. Maximum Expansion Racks: 7
4. Maximum I/O Modules per Rack: 16
5. Dimensions: 6.81" x 3.94" x 1.57" (173 x 100 x 40 mm)
6. Weight: 4 lbs (1.8 kg)
