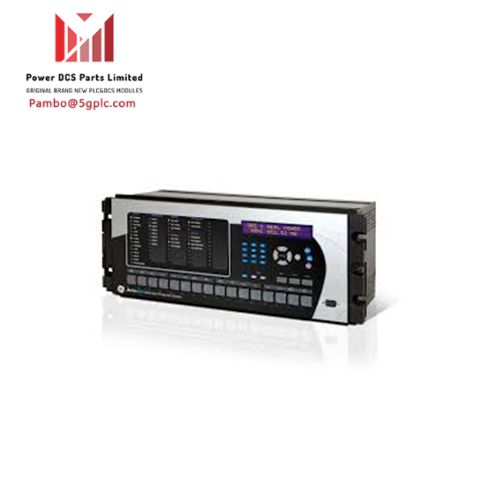

GE G60G01HCHF8FH67M8FP6DU6DW6C Generator Management Relay

Description

Built on the industry-leading UR platform, the G60 offers robust protection for medium and large generators, including steam and combustion turbines, combined cycle generators, and multi-circuit hydro units. It can also be used on pumped storage generators without requiring CT secondary circuitry switching. The G60 features advanced communication capabilities with an integrated, fully managed Ethernet switch, reducing network installation costs and supporting industry-standard communication protocols.

Key Benefits

• Secure, high-speed protection elements compliant with IEEE C37.102.
• Advanced IEC 61850 Ed. 1 and Ed. 2 certified implementation, settings via SCL files, and flexible process bus support (IEC 61850-9-2LE, IEC 61869, or IEC 61850-9-2 Hardfiber) ensuring interoperability, device management optimization, and reduced ownership costs.
• Routable GOOSE (R-GOOSE) for wide area protection and control applications.
• Advanced cybersecurity features with "CyberSentryTM" meeting modern industry requirements.
• Phasor Measurement Unit (synchrophasor) support according to IEEE C37.118 (2011) and IEC 61850-90-5.
• Application flexibility with multiple I/O options including high-density I/O, programmable logic, modularity, and specific customization.
• Integrated large, full-color display for real-time visualization, bay mimic control, annunciator functionality, and graphical phasor visualization.

Applications

• Medium to large generators driven by steam, gas, or hydraulic turbines.
• Pumped storage generators used as pumping motors for reservoir storage.
• Stand-alone protection or component in automated substation control systems.
• Standard protection product for new General Electric generator installations.
