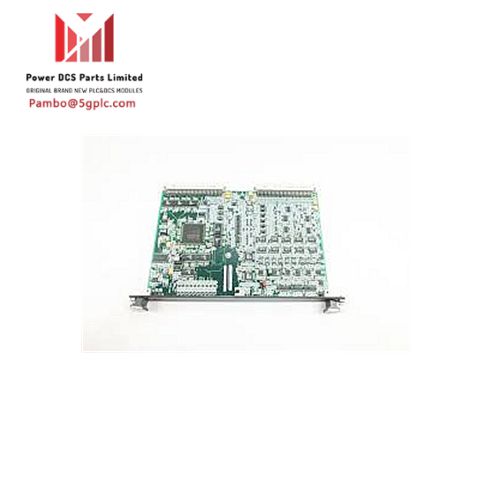

GE Fanuc IS200EMIOH1AEB Exciter Main I/O Board

SPECIFICATIONS:

Part Number: IS200EMIOH1AEB
Manufacturer: General Electric
Series: EX2000
Product Type: Exciter Main I/O Board
Number of channels: 12
Input span: 4-20 mA
Technology: Surface Mount
Common Mode Voltage Range: ±5 V
Maximum Lead Resistance: 15Ω
Analog output current: 0-20 mA
Operating temperature: -30 to 65 °C
Size: 8.26 cm high x 4.19 cm
Repair: 3-7 Day
Availability: In Stock
Country of Origin: United States
Manual: GEI-100453

FUNCTIONAL DESCRIPTION:

IS200EMIOH1AEB is an Exciter Main I/O Board manufactured and designed by General Electric as part of the EX2000 Series used in GE Excitation Control Systems. The Main I/O board is a single-slot, double-height VME-style board that mounts in the control rack. EMIO handles the I/O from the EPCT, ECTB, EACF, and EXTB terminal boards. The I/O includes PT and CT signals. Contact inputs, output relay drivers, and pilot trip relay drives. It also sends logic-level gate pulse signals over the backplane to the ESEL board, which sends them to EGPA in the power conversion cabinet. EMIO handles inputs and outputs from several I/O boards that are cabled to the control rack. Gate command outputs to ESEL and the flashing and de-excitation outputs to EXTB are shown in the following figure. Commands from EMIO to ESEL are transferred over the backplane.
