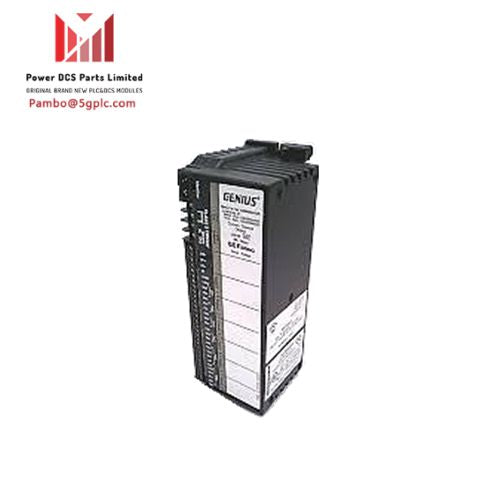

GE Fanuc IC660BBA025 Current-Source Analog Input Block

Description

The GE IC660BBA025 is a 24/48 VDC Current-Source Analog Output Block. It features six 4-20mA output circuits and requires no calibration. It is software-configurable with advanced diagnostics and bus switching module control.

Features

• Six 4-20mA analog output circuits
• No calibration required for operation
• Software configurable
• Advanced diagnostics
• Dedicated Bus Switching Module control
• Provides power to all circuits; no separate power is required for 4-20mA signals
• Output accuracy of 0.15% at 25°C
• Output resolution of 6μA
• Configurable features include output hold last state or default, circuit scaling to engineering units values, output feedback checking, and feedback time
• CPU redundancy
• Fault reporting can be enabled or disabled circuit-by-circuit
• Automatic diagnostic checks for output overrange and underrange, and output feedback

Technical Specifications

• Size (height x width x depth): 8.83” (22.44cm) x 3.34” (8.48cm) x 3.91” (9.93cm)
• Weight: 4 lbs. (1.8 kg)
• LEDs (I/O Block): Unit OK, I/O Enabled
• Block to Block Isolation: 1500V for one minute
• Heat Dissipation: 12 Watts maximum
• Block Power (nominal): 24/48VDC
• Power supply voltage: 18-56 VDC
• Maximum current: 600mA
• Frequency/ripple: 10% max. ripple
• PS dropout time: 10ms min.
• Output Specifications: Accurate control of output currents from 0-24mA
