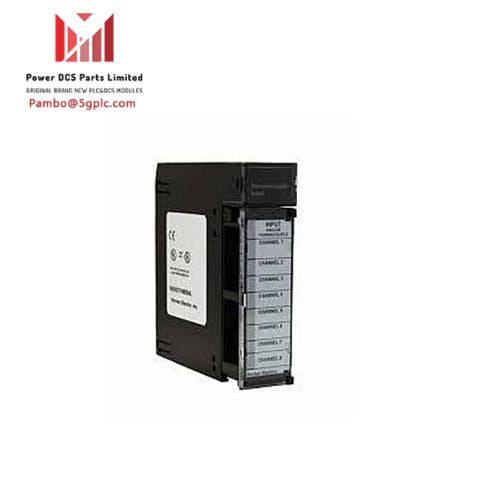

GE Fanuc HE693THM884 High Resolution Thermocouple Input Module

Product Description

The Horner APG High Resolution Thermocouple Input Module enables direct connection of thermocouple temperature sensors to the PLC without the need for external signal processing. All analog and digital processing of the thermocouple signal is performed on the module, which offers high resolution (0.1°C) and reporting values in 0.5°C, 0.5°F, 0.1°C, or 0.1°F increments. The module includes eight thermocouple channels assigned to 8 %AI input registers, 16 %I Alarm Bits, and alarm setpoints through 8 %AQ registers.

HE693THM884 Specifications:

• Power Consumption: 100mA @ 5VDC
• Number of Channels: 8
• Types Supported: J, K
• Input Range (Temp.):
  • J: -210 to +760°C
  • K: -270 to +1372°C
• Common Mode Rejection: >100dB
• A/D Conversion Type: 18-Bit Integrating
• Scan Rate: 40 channels per second
• Resolution: 0.1°C
• Operating Temperature: 0 to 60°C (32 to 140°F)
• Accuracy: Refer to specifications table
