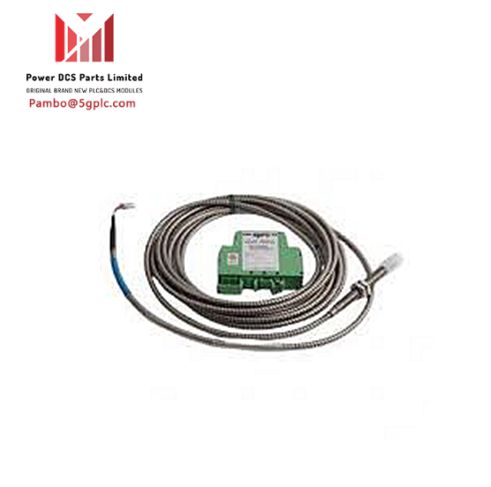

Epro CON041+PR6423/10R-131 Eddy Current Signal Converter

Description

The EPRO CON041 Signal Converter combined with the PR6423/10R-131 Proximity Sensor provides an advanced solution for non-contact displacement and vibration measurement in industrial machinery. The system leverages eddy current technology to detect the radial and axial displacement of rotating equipment.

Features

• Non-contact measurement
• High precision and reliability
• Suitable for critical turbomachinery applications
• Measures radial and axial shaft displacement, position, eccentricity, and speed
• Compatible with various sensor types (PR6422, PR6423, PR6424, PR6425, PR6426)

Technical Specifications

• Frequency Range: 0 to 20,000 Hz
• Rise Time: <15μs
• Operating Temperature Range: -30 to 100°C (-22 to 212°F)
• Shock and Vibration: 5g @ 60Hz @ 25°C (77°F)
• Protection Class: IP20
• Supply Voltage Range: -23V to -32V (Output Range -4V to -20V), -21V to -32V (Output Range -2V to -18V)
• Housing Material / Weight: PA 6.6 / ~60 grams (2.12 oz)
• Mounting: Din Rail
• Connections: Screw Terminal (Max. 1.5mm², Wire-end Sleeves)
• Compliance and Certifications: CE, ATEX, IEC-Ex, CSA
