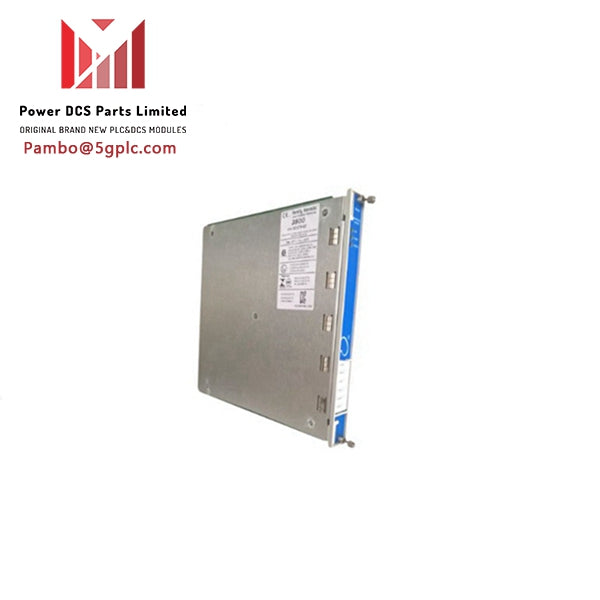

Bently Nevada 3500/50M 286566-02 Tachometer Module Brand New

Overview

The Bently Nevada 3500/50M 286566-02 is a Tachometer Module designed for the Bently Nevada 3500 Series Monitoring System. It is a 2-channel module that accepts input from proximity probes or magnetic pickups to determine shaft rotative speed, rotor acceleration, and rotor direction.

Features

• 2-channel module
• Accepts input from proximity probes or magnetic pickups
• Determines shaft rotative speed, rotor acceleration, and rotor direction
• Compares measurements against user-programmable alarm setpoints
• Generates alarms when setpoints are violated
• Supplies conditioned Keyphasor signals to the backplane of the 3500 rack
• Peak hold feature stores the highest speed, highest reverse speed, or number of reverse rotations

Technical Specifications

• Part Number: 3500/50M 286566-02
• Manufacturer: Bently Nevada
• Series: Bently Nevada 3500 Series Monitoring System
• Number of Channels: 2
• Input Type: Proximity probes or magnetic pickups
• Output Type: Conditioned Keyphasor signals
• Power Supply: 24V DC
• Form Factor: 3500 Series module
• Dimensions: 100 mm x 50 mm x 25 mm (3.94 in. x 1.97 in. x 0.98 in.)
• Weight: 0.2 kg (0.44 lbs)
