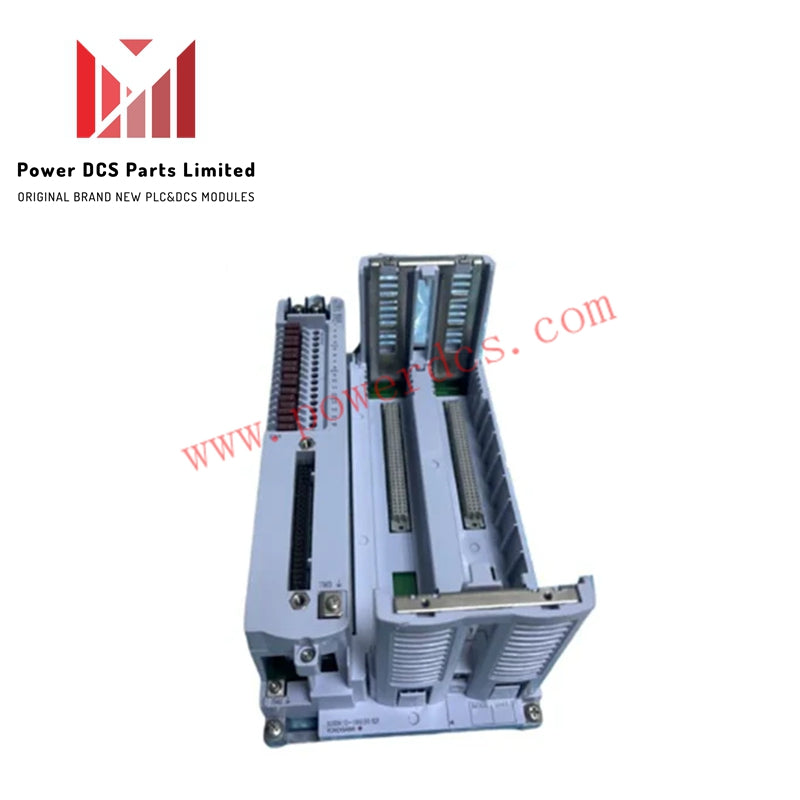

Base Plate (for N-IO) S2BN1D-19030 Yokogawa

Description

• Model: S2BN1D-19030

• Manufacturer: Yokogawa

• Type: Base Plate for N-IO

Mounting

• DIN Rail Mount Type

• Wall Mount Type: With M4 × 4 screws

Configuration

• I/O Module: Redundant or Single

• Number of Channels: 16 channels

Connections

• Field Signal:

• Pressure Clamp Terminal (S2BN1D-1)

• Spring Clamp Terminal (S2BN1D-2)

• Cable Connector (S2BN1D-9)

• F-SB Bus: Connected by F-SB Bus Cable (S2KLF10)

• System Power Supply: Connected by the Power Supply Cable for Base Plate (S2KPB10)

• Grounding: M3 screw terminal

Electrical Data

• Withstanding Voltage:

• Between input/output and system: 1500 V AC for 1 minute, 42 V DC continuous

• Insulation Resistance: 100 MΩ or more (500 V DC)

• Field Power Supply:

• Rating: 24 V DC +20%/-10%, up to 11.0 A

• Connection: Connected by the cable to the field power supply terminal (EP+, EP-)

• Over Voltage Protection (OVP) Detection Level: 32 V or lower

• Withstanding Voltage between the output and the ground: 500 V AC or higher for 1 minute

• Capacitance between the output and the ground: 0.4 μF or less

Specifications

• Weight: Approx. 1.4 kg

Suffix Codes

• -1: Wall mount type

• 9: Cable connector interface (for AKB cable)

• 0: With no explosion protection

• 3: With ISA Standard G3 and wide range temperature (-40 to 70 °C)

• 0: Always 0
