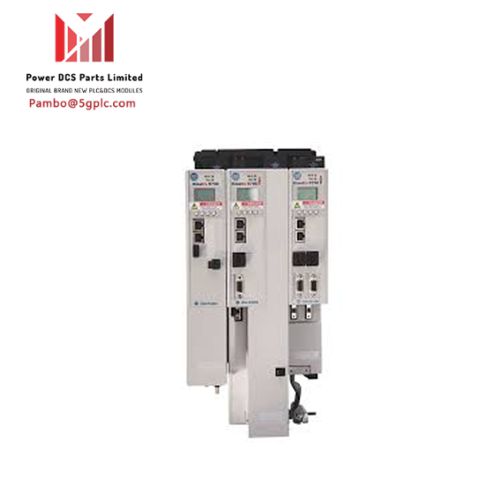

Allen Bradley 2198-D006-ERS3 Dual-axis Servo Drive Module

Overview
The Allen-Bradley 2198-D006-ERS3 is a dual-axis servo drive that is part of the Kinetix 5700 Integrated Motion Platform. It is a high-performance and reliable drive that is designed for demanding industrial automation applications. The 2198-D006-ERS3 offers a number of features and benefits, including:

• Dual-axis control: The 2198-D006-ERS3 can control two servo motors simultaneously, which reduces the amount of hardware required and simplifies the control system.
• High performance: The 2198-D006-ERS3 delivers high performance, with continuous output power of 1.7 kW and a torque value of 4.4-5.3 lb·in.
• Reliability: The 2198-D006-ERS3 is designed to withstand the harsh environments of industrial automation applications. It features rugged construction and redundant components to ensure maximum reliability and uptime.
• EtherNet/IP communication: The 2198-D006-ERS3 supports EtherNet/IP communication, which is a high-performance industrial Ethernet protocol. EtherNet/IP allows the 2198-D006-ERS3 to communicate with other devices on the network, such as PLCs, HMI panels, and other servo drives.
• Kinetix 5700 Integrated Motion Platform: The 2198-D006-ERS3 is part of the Kinetix 5700 Integrated Motion Platform, which provides a complete solution for industrial motion control applications. The Kinetix 5700 Integrated Motion Platform includes servo drives, motors, encoders, and software tools to help users design, implement, and maintain their motion control systems.

Technical Specifications

• Continuous output power: 1.7 kW
• Peak output power: 3.4 kW
• Torque value: 4.4-5.3 lb·in
• Speed range: 0-3000 rpm
• Communication: EtherNet/IP
• Operating temperature range: 0°C to 60°C
• Storage temperature range: -40°C to 85°C

Features:

• Dual-axis servo drive
• 1.7 kW continuous output power
• 4.4-5.3 lb·in torque value
• 165 µF internal capacitance
• EtherNet/IP communication
• Kinetix 5700 Integrated Motion Platform
