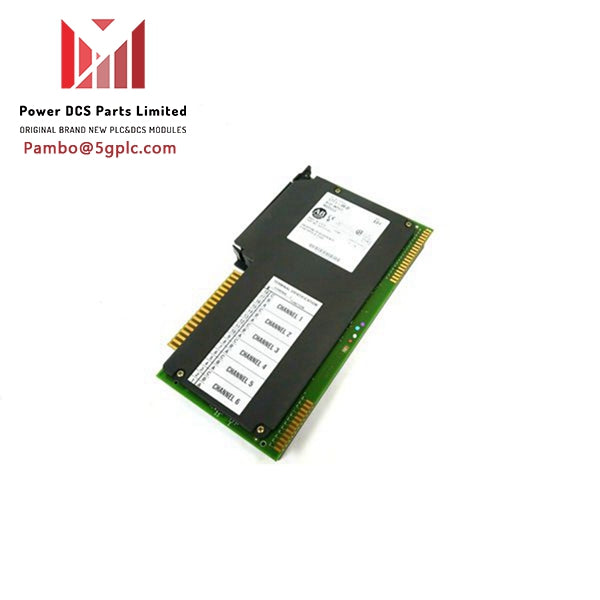

Allen Bradley 1771-IXE Thermocouple/Millivolt Input Module In Stock Brand New

Overview
The AB 1771-IXE is a thermocouple/millivolt input module that is part of the Allen-Bradley PLC-5 I/O system. It is used to measure and convert analog voltage signals from thermocouples and other millivolt sources into digital values that can be used by a PLC. The 1771-IXE can support up to 8 input channels and can be configured for a variety of thermocouple types and millivolt ranges.

• Input range: -100 mV to 100 mV, -200 mV to 200 mV, -400 mV to 400 mV, -800 mV to 800 mV, -1600 mV to 1600 mV
• Thermocouple types: E, J, K, T, R, S
• Accuracy: ±0.5°C (±1°F)
• Resolution: 1°C, 1°F, or 10 µV
• Input isolation: 1000 V peak between inputs, between input and common, and between input and backplane connections
• Common mode rejection: 120 dB at 60 Hz, up to 1000 V peak
• Common mode impedance: Greater than 10 megohms
• Normal mode rejection: 60 dB at 60 Hz
• Input overvoltage protection: 120 V rms, continuous
• Open input detection: Open input produces a maximum value reading in less than 10 seconds
• Data format: 4-digit BCD, 2's complement binary, signed magnitude binary
• Power consumption: 750 mA @ 5 V; 3.75 W
• Operating temperature: 0 to 60°C (32 to 140°F)
• Storage temperature: -40 to 85°C (-40 to 185°F)
• Relative humidity: 5 to 95% (without condensation)
• Dimensions: 142 x 222 x 45 mm (5.6 x 8.75 x 1.75 inches)
• Weight: 0.7 kg (1.5 lbs)

Features:

• 8 differential analog input channels
• Supports a variety of thermocouple types and millivolt ranges
• Cold junction compensation
• Auto-calibration
• High accuracy and resolution
• Isolated inputs
• Common mode rejection
• Input overvoltage protection
• Open input detection
• Selectable data format
• Compatible with all PLC-5 processors

NEW AND ORIGINAL ITEMS IN STOCK WITH ONE YEAR WARRANTY
Our company provides professional services: PLC module, DCS module, CPU module, etc

Our main brand：
Bently Nevada, Allen-Bradley， ABB， Honeywell， Invensys， GE Fanuc， Yokogawa， Siemens， Foxboro， Triconex， ICS Triplex， Fuji.

Hope anyone inquires from us, pls contact below:
Pambo@5gplc.com
Tel:+86 13306036024  (Whats-app, Skype)

1. Lower your support costs
2. Provide ongoing availability of automation replacement parts
3. Quantity available: 10
4. Warranty: 12 months.
5. Technical specifications, manuals, and data sheets


Inquiry details, pls pay attention as below:
*All quotes based on EXW only
*Shipping time:5-7 days, via DHL/TNT/UPS/EMS/Fedex...
*Payment terms: T/T Payment in Advance
