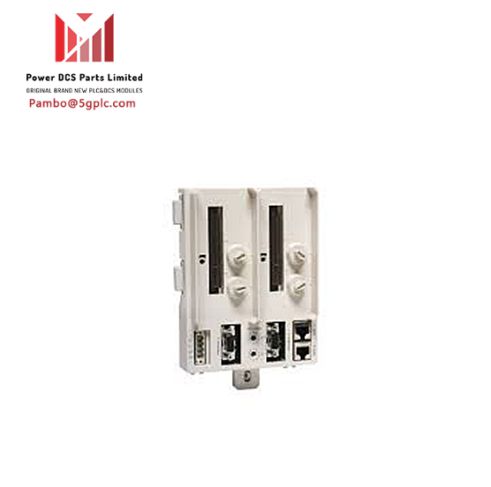

ABB YT204001-FC YPH105E Digital Speed Input Board

Overview
The ABB YT204001-FC YPH105E is a digital speed input board designed for use in industrial automation applications. It provides high-precision speed measurement and monitoring capabilities for a wide range of rotating equipment, such as motors, pumps, and fans. The board is also equipped with advanced features that make it suitable for demanding applications.

Features

• High accuracy: Provides speed measurement accuracy of up to 0.1% of full scale.
• Wide measuring range: Supports a wide range of speed measurements, from 0.1 Hz to 10 kHz.
• Versatile signal inputs: Accepts a variety of input signals, including pulse, sine wave, and square wave.
• Advanced filtering: Employs advanced filtering techniques to eliminate noise and interference.
• Dual-channel operation: Supports two independent speed measurement channels for simultaneous monitoring of two different rotating machines.

Technical Specifications

• Number of channels: 2
• Measuring range: 0.1 Hz to 10 kHz
• Accuracy: ±0.1% of full scale
• Input signals: Pulse, sine wave, square wave
• Output signal: Isolated 0-10 VDC or 4-20 mA
• Power supply: 24 VDC
• Mounting: DIN rail
• Dimensions: 107 mm x 22.5 mm x 85 mm
• Weight: 0.5 kg
