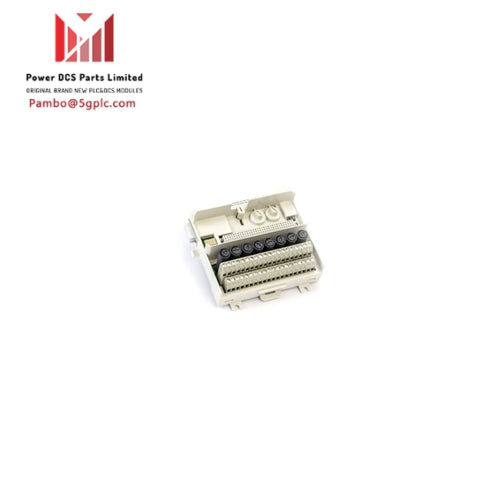

ABB TU838 3BSE008572R1 Module Termination Unit

Product ID

3BSE008572R1

ABB Model Name

TU838

Catalog Description

TU838 Extended MTU, 50V

Detailed Description

The TU838 is an Extended Module Termination Unit featuring 2x4 fused transducer power outlets, 16 signal terminals, 2x4 return terminals, and 2x2 L+ and L- terminals. This module is designed for horizontal mounting.

Media Description

The TU838 Extended Module Termination Unit includes 2x4 fused transducer power outlets, 16 signal terminals, 2x4 return terminals, and 2x2 L+ and L- terminals. The module is mounted horizontally for optimal performance.

Product Application Type

Module Termination Unit

Ordering Information

• HS Code: 853690—Electrical apparatus for switching or protecting electrical circuits, or for making connections to or in electrical circuits (for example, switches, relays, fuses, surge suppressors, plugs, sockets, lamp-holders, and other connectors, junction boxes), for a voltage not exceeding 1,000 volts; connectors for optical fibres, optical fibre bundles or cables.
• Customs Tariff Number: 85369095

Dimensions

• Product Depth: 64 mm
• Product Height: 170 mm
• Product Width: 58.5 mm
• Product Weight: 0.375 kg

Environmental Conditions

• RoHS Status: Compliant with EU Directive 2011/65/EU
• WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
• Number of Batteries: 0
• SCIP: No SVHC present in Bulgaria (BG)
