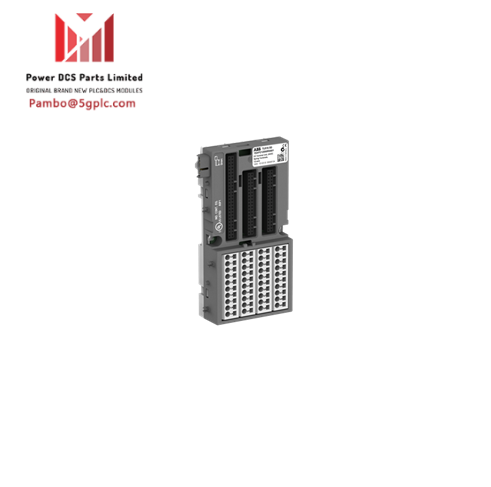

ABB TU516 1SAP212000R0001 I/O Terminal Unit

Overview
The ABB TU516 B4 1SAP212000R0001 is an I/O terminal unit designed for the AC 800M control system. It provides a flexible and scalable solution for connecting a variety of digital and analog input/output (I/O) signals to the AC 800M system.

Features

• High-density I/O: Supports up to 32 I/O points per module, reducing the number of modules required and simplifying system design.
• Mixed I/O: Combines digital and analog I/O capabilities on a single module, providing flexibility in signal management.
• Hot swapping: Allows for module replacement without powering down the system, enhancing system availability and reducing downtime.
• Compact design: Small footprint facilitates easy integration into various system configurations.

Technical Specifications

• Number of I/O points: Up to 32 (combination of digital and analog)
• Digital input type: Dry contact, sinking/sourcing
• Digital output type: Relay, transistor, triac
• Analog input type: Voltage, current, thermocouple, RTD
• Analog output type: Voltage, current
• Communication protocol: PROFIBUS DP
• Power supply: 24 VDC
• Mounting: DIN rail
• Dimensions: 125 mm x 22.5 mm x 120 mm
• Weight: 0.3 kg
