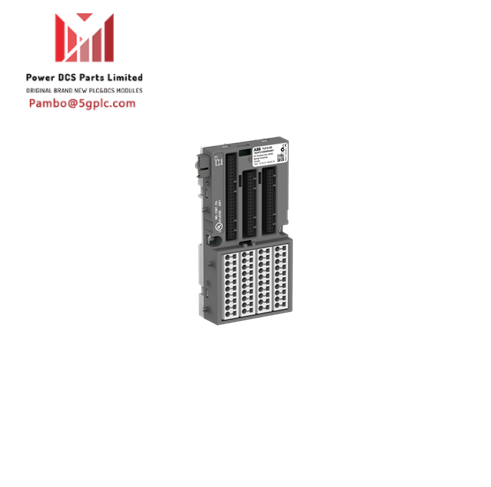

ABB TU515 1SAP212200R0001 I/O Terminal Unit Module

• Product ID: 1SAP212200R0001
• ABB Type Designation: TU515
• EAN: 4016779649223
• Catalog Description: I/O terminal unit for analog and 24 VDC digital modules with screw terminals (TU515)
• Long Description: TU515 is an S500 I/O terminal unit designed for analog and 24 VDC digital modules, featuring screw terminals.

Ordering Information:

• CN8 Code: 85389091
• Invoice Description: I/O terminal unit for analog and 24 VDC digital modules with screw terminals (TU515)
• Made To Order: No
• Minimum Order Quantity: 1 piece
• Order Multiple: 1 piece
• Selling Unit of Measure: Piece

Dimensions:

• Net Weight: 0.232 kg
• Depth/Length: 28 mm
• Height: 135 mm
• Width: 67.5 mm
• Gross Weight: 0.262 kg
• Package Level 1 Dimensions: 147 mm (depth/length) x 40 mm (height) x 78 mm (width), packaged in 1 carton

Technical Specifications:

• Function: Designed for analog and 24 VDC digital modules with screw terminals
• Number of Analog Configurable I/Os: 0
• Degree of Protection: IP20
• Supply Voltage: 24 V DC
• Ambient Air Temperature:
  • Operation: 0 … +60 °C
  • Storage: -40 … +70 °C

Additional Information:

• Product Main Type: TU515
• Product Name: Distributed Automation I/Os

Classifications:

• eClass: 27-24-22-92
• ETIM 8: EC000810 (PLC mounting rack)
• UNSPSC: 32151703

Environmental Information:

• WEEE B2C / B2B: Business To Business
• WEEE Category: 5 (Small Equipment, No External Dimension More Than 50 cm)
