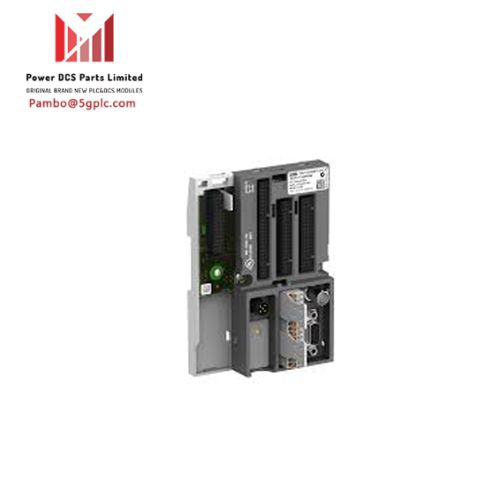

ABB TB511-ETH B1 1SAP111100R0270 Terminal Base

General Information

• Extended Product Type: TB511-ETH
• Product ID: 1SAP111100R0270
• ABB Type Designation: TB511-ETH
• EAN: 4016779680868
• Catalog Description: Terminal base for AC500 V2. 1 slot for communication module. Ethernet interface. 2 serial interfaces RS232/RS485 (TB511-ETH)
• Long Description: TB511-ETH: AC500 Terminal base for AC500 V2. Features 1 slot for a communication module, Ethernet interface, and 2 serial interfaces RS232/RS485.

Ordering

• CN8: 85389091
• Invoice Description: Terminal base for AC500 V2. 1 slot for communication module. Ethernet interface. 2 serial interfaces RS232/RS485 (TB511-ETH)
• Made To Order: No
• Minimum Order Quantity: 1 piece
• Order Multiple: 1 piece
• Selling Unit of Measure: Piece

Dimensions

• Product Net Weight: 0.159 kg
• Product Net Depth / Length: 28 mm
• Product Net Height: 135 mm
• Product Net Width: 95.5 mm
• Gross Weight: 0.215 kg
• Package Level 1 Depth / Length: 147 mm
• Package Level 1 Height: 40 mm
• Package Level 1 Width: 131 mm
• Package Level 1 Units: 1 carton

Technical

• Function: For AC500 V2. 1 slot for communication module. Ethernet interface. 2 serial interfaces RS232/RS485
• Communication Interface: D-SUB/RJ45/Terminals
• Input Voltage Type: DC
• Degree of Protection: IP20
• Supply Voltage: 24 V DC
• Ambient Air Temperature:
  • Operation: 0 to +60 °C
  • Storage: -40 to +70 °C

Additional Information

• Product Main Type: TB511
• Product Name: Distributed Automation PLCs

Classifications

• eClass: 27-24-22-92
• ETIM 8: EC000810 - PLC mounting rack
• UNSPSC: 32151703

Environmental

• SCIP: a6c04b4a-b9a6-4a06-910c-402defa687f6 Germany (DE)
• WEEE B2C / B2B: Business To Business
• WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
