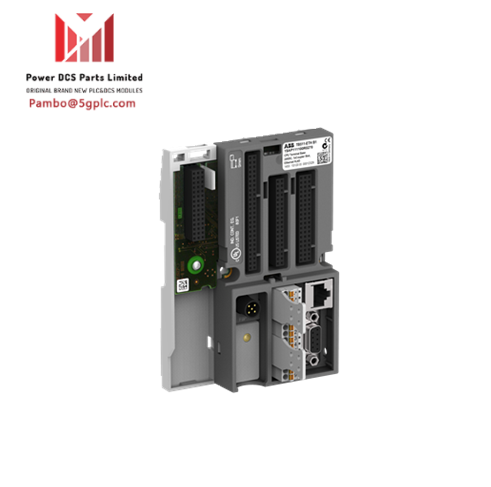

ABB TB511-ETH 1SAP111100R0270 Terminal Base

General Information

Product Model:
TB511-ETH

Product ID:
1SAP111100R0270

ABB Type Designation:
TB511-ETH

European Article Number (EAN):
4016779680868

Catalog Description:
Terminal base for AC500 V2 with one slot for communication module, Ethernet interface, and two serial interfaces (RS232/RS485).

Long Description:
TB511-ETH: AC500 Terminal base designed for AC500 V2. It includes one slot for a communication module, an Ethernet interface, and two serial interfaces (RS232/RS485).

Ordering Information

CN8:
85389091

Invoice Description:
Terminal base for AC500 V2. Includes one slot for communication module, Ethernet interface, and two serial interfaces (RS232/RS485).

Made to Order:
No

Minimum Order Quantity:
1 piece

Order Multiple:
1 piece

Sales Unit:
Piece

Dimensions

Product Net Weight:
0.159 kg

Product Net Depth:
28 mm

Product Net Height:
135 mm

Product Net Width:
95.5 mm

Gross Weight:
0.215 kg

Packaging Dimensions (Length x Height x Width):
147 mm x 40 mm x 131 mm

Packaging Unit:
1 box

Technical Specifications

Function:
Designed for AC500 V2 with one slot for communication module, Ethernet interface, and two serial interfaces (RS232/RS485).

Communication Interface:
D-SUB/RJ45/Terminals

Input Voltage Type:
DC

Degree of Protection:
IP20

Power Supply Voltage:
24 V DC

Ambient Temperature:
Operation: 0 to +60 °C
Storage: -40 to +70 °C

Additional Information

Product Series:
TB511

Product Family:
Distributed Automation PLCs

Classification

E-Class:
27-24-22-92

ETIM 8:
EC000810 - PLC mounting rack

UNSPSC:
32151703

Environmental Conditions

SCIP:
a6c04b4a-b9a6-4a06-910c-402defa687f6 Germany (DE)

WEEE B2C / B2B:
Business To Business

WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Usage Position (As Part of a "Kit")

Product:
Controller Kit containing PM585-ETH, CM579-ETHCAT, TB511-ETH (PM585-MC-KIT).
