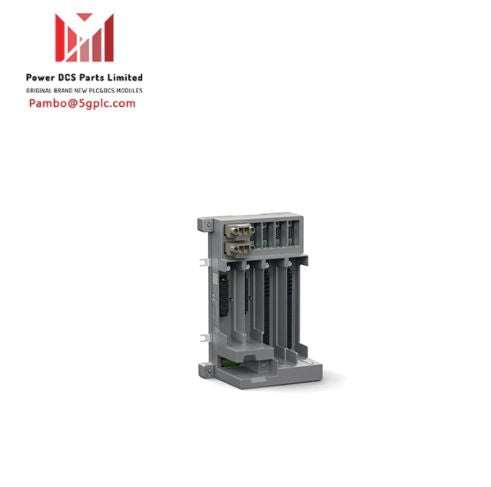

ABB S800 I/O TU860 MTU for Ethernet FCI

• Article Number: 3BSE078710R1
• Communication Protocol: Ethernet
• Type: MTU for Ethernet FCI (S800 I/O)
• Mechanics: Select I/O

Features and Benefits:

• Two mounting slots for connecting single/redundant CI845 FCI modules.
• Two mounting slots for connecting single/redundant Ethernet Adapters.
• Two connectors for connecting single/redundant 24 V power supplies.
• Two Modulebus connectors for connecting the I/O cluster (only S800 I/O modules can be connected).
• Mountable on a 35 mm DIN rail.

General Information:

• Installation in Hazardous Area/Locations: Yes/Yes
• Operating Temperature: -40°C (-40°F) to +70°C (158°F)
• Storage Temperature: -40°C (-40°F) to +85°C (185°F)
• Pollution Degree: Pollution Degree 2 according to IEC 60664-1
• Relative Humidity: 5% to 95% (no condensation)
• Altitude: -1000 to 5000 m (restrictions apply)
• Mechanical Operating Conditions: IEC 61131-2
• EMC: IEC/EN 61000-6-4, IEC/EN 61000-6-2
• Overvoltage Categories: Category II according to IEC 60664-1
• Protection Class: IP20 according to IEC 60529
• CE Marking: Yes
• UKCA: Yes

Electrical Safety:

• IEC/EN 61010-1
• UL 61010-1
• CSA-C22.2 No. 61010-1-12
• IEC/EN 61010-2-201
• UL 61010-2-201
• CSA C22.2 No. 61010-2-201

Marine Certification:

• DNV, ABS

Corrosive Atmosphere:

• G3

Environmental Compliance:

• EU RoHS
• UAE RoHS
• CN RoHS
• WEEE (EU)

Hazardous Area Certifications:

• ATEX: II 3G Ex nA IIC T5 Gc
• IECEx: No
• US/CAN (cULus):
  • CL I, ZN 2, AEx ec IIC T4 Gc, Ex ec IIC T4 Gc X
  • CL I, ZN 2, AEx nA IIC T4 Gc, Ex nA IIC T4 Gc X
  • CL I, DIV 2, Groups A-D T4
• CCC: No

Dimensions:

• Width: 135 mm (5.31 in.)
• Depth: 95.5 mm (3.76 in.)
• Height: 210 mm (8.26 in.)
• Weight (including base): 500 g (1.1 lbs)
