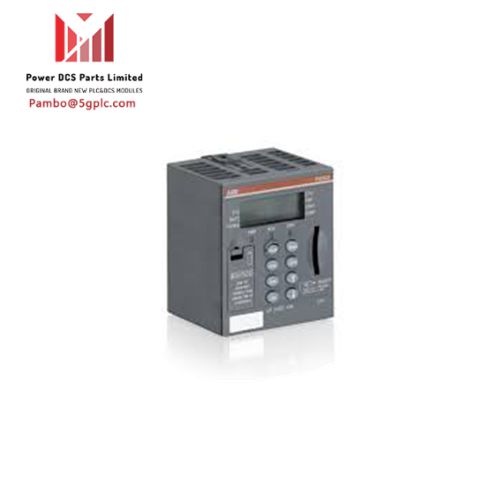

ABB PM590 1SAP150000R0100 Prog Logic Controller 2MB

Overview Information

Product Model:
PM590-R01xx

Product ID:
1SAP150000R0100

ABB Model Name:
PM590

European Article Number (EAN):
4016779663496

Catalog Description:
PM590: AC500, Prog. Logic Controller 2MB

Detailed Description:
PM590: AC500, Prog. Logic Controller 2MB 24VDC, 2xRS232/485, FBP, SD-Card Slot, LCD Display

Additional Information

ABB Model Name:
PM590

ABS Certification:
1SAA960002-0106

Ambient Temperature:

• Operation: 0 ... +60 °C
• Storage: -40 ... +70 °C

BV Certification:
1SAA960003-0204

CN8:
85389091

CS31-Bus:
1

CSA Certification:
1SAA960000-1712

Communication:
Serial interfaces for communication and programming

Communication Interface:
Serial/FieldBusPlug

Country of Origin:
Germany (DE)

Customs Tariff Number:
85389091

DNV Certification:
DNV Certificate - Distributed Automation PLC AC500, S500 - Shipping approval

Data Sheet, Technical Documentation:
2CDC125002B0207

Conformity Declaration - C Mark:
1SAA960000-3302

Conformity Declaration - CE:
1SAD938504-0161

Conformity Declaration - KCC:
1SAA960001-4801

Protection Rating:
IP20

Display Type:
LCD

European Article Number (EAN):
4016779663496

Environmental Information:
1SAA960007-2406

Dimensions:
Undefined

GL Certification:
1SAA960004-0409

GOST Certification:
1SAA962000-2703

Gross Weight:
0.22 kg

I/O Options:
CPU with Local I/O - on I/O-Bus

Manuals and Guides:
2CDC125080M0202

Invoice Description:
PM590: AC500, Prog. Logic Controller 2MB

LR Certification:
1SAA960002-0506

Made to Order:
No

Max. Analog I/O Quantity:
160 AI, 160 AO local max. 10 extension modules

Max. Digital I/O Quantity:
320 DI, 240 DO/DC local max. 10 extension modules

Maximum Operating Altitude:
2000 m

User Data Storage Capacity:
2560 kB

User Program Storage Capacity:
2048 kB

User Data Storage Type:
Flash EPROM

User Program Storage Type:
Flash EPROM, non-volatile RAM, SD Card

Minimum Order Quantity:
1 piece

Mounting Position:
Horizontal, Vertical possible with derating

Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

Number of Display Lines:
1

Number of Function Keys:
8

Number of LEDs:
3

Order Multiples:
1 piece

Power Supply:
24 V DC

Initial Voltage:
24 V DC

Product Thickness:
72 mm

Product Series:
PM590

Product:
Distributed Automation PLCs

Product Net Depth:
62 mm

Product Net Height:
76 mm

Product Net Weight:
0.15 kg

Product Net Width:
67.5 mm

Product Application Type:
PLC-AC500

Programming Software:
PS501-PROG Control Builder Plus

Quote Only:
No

RINA Certification:
1SAA960003-0807

RMRS Certification:
1SAA960001-0706

Real-Time Clock:
Yes

Replacement Product ID (New):
1SAP150000R0200

RoHS Information:
1SAA960005-4410

Auxiliary Current:
0.2 A

Sales Measurement Unit:
Piece

Serial Port 1 Type:
RS232 / RS485 configurable, Programming, Modbus Master or Slave, ASCII, CS31 Master

Serial Port 2 Type:
RS232 / RS485 configurable, Programming, Modbus Master or Slave, ASCII

Brief Description:
PM590: AC500, Prog. Logic Controller 2MB

Supply Voltage:
24 V DC

UL Certification:
1SAA960000-1612

UNSPSC:
32151705

WEEE B2C / B2B:
Business To Business

WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

cUL Certification:
1SAA960000-1712

cULus Certification:
1SAA960000-1712

E-Level:
27-24-22-07
