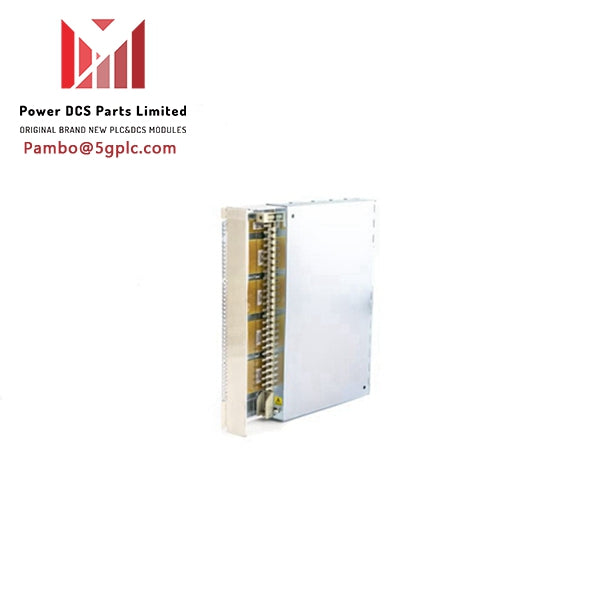

ABB DO620 3BHT300009R1 Digital Output Module

General Information

• Product ID: 3BHT300009R1
• ABB Type Designation: DO620
• Catalog Description: DO620 Digital Output 32ch, 60VDC
• Long Description: DO620 Digital Output 32Ch 60VDC Isolated, 4 groups

Additional Information

• Medium Description: DO620 Digital Output 32Ch 60VDC Isolated, 4 groups

• Product Type: I-O_Module

• Technical Information:

  • S600 I/O Digital Output Module
  • 32 channels, ≤ 60 VDC
  • Short-circuit proof transistors
  • Max. 0.5 A
  • Opto-isolated in four groups

• Compliance Note:

  • RoHS Exemption: Part exempt from 2011/65/EU (RoHS) as per Article 2(4)(c), (e), (f), and (j)
  • Reference Document: 3BSE088609 – EU Declaration of Conformity for ABB Advant Master Process Control System

Ordering

• HS Code: 853890 – Parts suitable for use solely or principally with apparatus of heading 85.35, 85.36, or 85.37
• Customs Tariff Number: 85389091

Dimensions

• Product Net Depth / Length: 252 mm
• Product Net Height: 273 mm
• Product Net Width: 40 mm
• Product Net Weight: 1.2 kg

Technical

• Channel Type: DO
• Number of Output Channels: 32

Environmental

• RoHS Status: Following EU Directive 2011/65/EU
• WEEE Category: 5 (Small Equipment – No External Dimension Exceeds 50 cm)
• Number of Batteries: 0
• SCIP: 895376c2-d73c-413e-968c-bbe025e053cb (Sweden)
