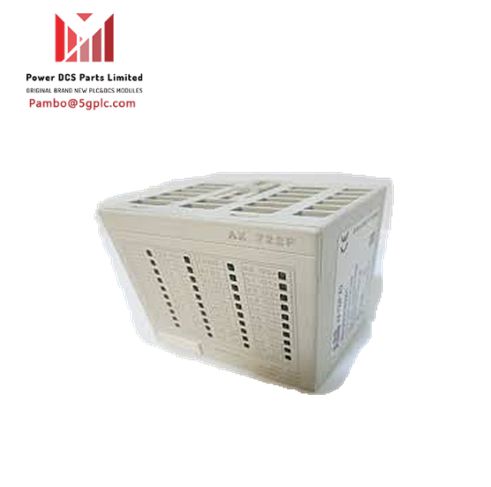

ABB AX722F 3BDH000377R0001 Analog Input/Output Module

General Information

• Product ID: 3BDH000377R0001

• ABB Type Designation: AX 722F Rev.A

• Catalog Description: AX 722F Analog Input/Output Module

• Long Description: The analog input/output module AX 722F offers even more flexibility, as it combines analog input and output channels in one module with 16 channels. Eight of these channels can be individually configured as analog inputs, which can again sense voltage, current, or temperatures. Furthermore, four channels can be configured as analog voltage outputs (-10 V to +10 V) or analog current outputs (0 … 20 mA or 4 … 20 mA) and the remaining four channels can provide voltage signals in the range from -10 V to +10 V. The inputs and outputs are electrically isolated from the other electronic circuitry of the module. There is no potential separation between the channels. This module is usable for PROFIBUS remote I/O and AC 700F / AC 900F direct I/O.

Additional Information

• Medium Description: For PROFIBUS Slave and direct I/O. 16 channel analog input/output module 8 AI: ±10 V, 0/4-20 mA, RTD, 24 VDC 4 AO: 0…+ 10V, ±10 V, 0/4-20 mA 4 AO: ± 10V 12 Bit + sign, 2-wire Use with TU 715F / TU 716F
• Product Type: I-O_Module

Ordering

• HS Code: 853890-- Parts suitable for use solely or principally with the apparatus of heading 85.35, 85.36 or 85.37.- Other
• Customs Tariff Number: 85389099

Dimensions

• Product Net Depth / Length: 54 mm
• Product Net Height: 76 mm
• Product Net Width: 67.5 mm
• Product Net Weight: 0.13 kg

Technical

• Channel Type: AX
• Number of Input Channels: 8
• Number of Output Channels: 8

Environmental

• RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
• WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
• Number of Batteries: 0
